Product Description

Note: New Brother BSL S-6200A has arrived! We put all 4 Boxes on a wood pallet, shrink wrap and strap to prevent damage in shipping.

New Generation Built-in type motor driven Single Needle Straight Lock Stitcher with Thread Trimmer.

Comes as 220V. Or, add Transformer included for use with 110V Power Source.

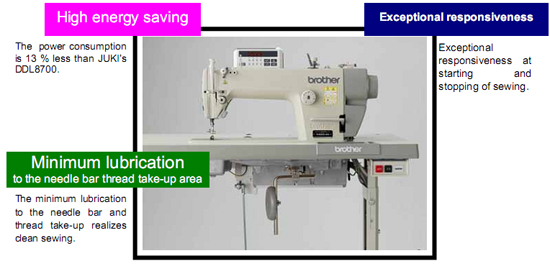

S-6200A has high energy saving and exceptional responsiveness with an original motor and a control box developed by Brother. High quality sewing has been realized with the performance of S-6200A, which contributes to improving productivity. The power consumption of S-6200A has been reduced by 41% compared to the V-belt driven system(with an AC servo motor).

Product Concept
With an original motor and a control box developed by Brother, featuring:
  • High reliability
  • High energy saving and reasonable price
  • New generation built-in type motor driven single needle straight lock stitcher with thread trimmer

    A downsized and flat control box providing a much
    larger leg space to be utilized

    A downsized and flat control box can provide much larger space leg space to be utilized. The efficiency of the operation has been improved.

    Exceptional responsiveness for comfortable sewing

    The smooth sewing has been realized. The start of sewing has 35% improved and stopping of sewing has 17% improved
    compared to the SL-2110.

    The machine speed at sewing start can be set by operator’s preference





    Improving the efficiency of operation


    Minimum lubrication to the needle bar and thread take-up area

    Supplying the minimum lubrication to the needle bar and thread take-up area. The machine arm is equipped with the oil stopper plate to protect the needle bar and thread take-up area from oil spatters of the feed eccentric wheel area. Oil leakage from the needle bar can be prevented, realizing clean sewing. Also, sewing products will not be stained without V-belt.


  • Start backtack
  • End backtack
  • Continuous backtack
  • Needle breakage prevention

    S6200A shown with optional Racing PL and PS puller
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications
Click HERE for complete brochure on Brother S-6200A Sewing Machine

Click HERE for Instruction Manual to be read before using Brother S6200A Single Needle Straight Lock Stitcher with Thread Trimmer

The S-6200A single needle lockstitch Underbed thread trimming machine with brothers New Generation Built-in Motor Drive.

The S-6200A has high energy saving and exceptional responsiveness with an original motor and control box developed by brother. High quality sewing has been realized with the performance of the S-6200A, which contributes to improving your productivity.

Max. speed: 5000spm
Max. stitch length: 4.2mm
Foot lifter height 6mm (manual) : 13mm (knee lifter)
Built-in bobbin winder
Fully automatic lubrication
Rotary hook
Bed size: 476x178mm

href="http://www.allbrands.com/info/storepolicies.php#freight"target="_blank"> Please review our Freight LTL Shipping Policies Ships Ground Freight only.
Included Accessories
Knocked Down Unassembled Table & Stand
Other Images

icon S-6200A. Single Needle Straight Lock Stitcher with Thread Trimmer. New Generation Built-in type motor driven Single Needle Straight Lock Stitcher with Thread Trimmer.

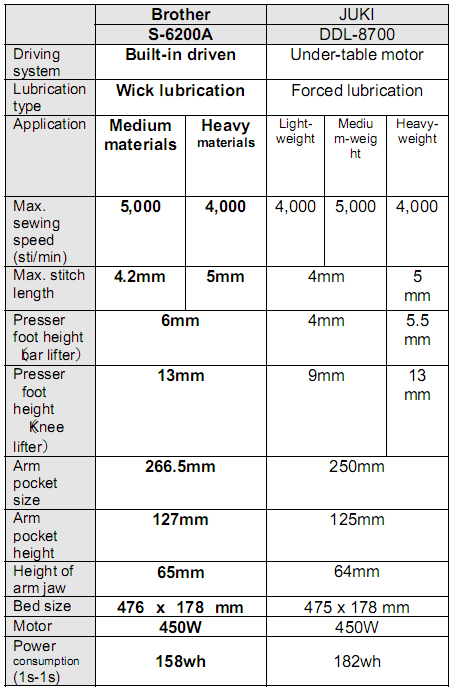

Comparisons

Advantageous point compared to JUKI DLL-8700


High energy saving with an original motor developed by Brother

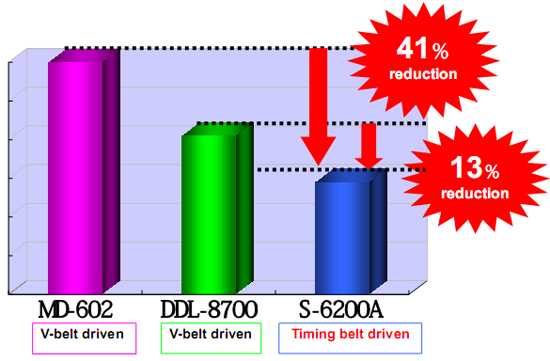

The high energy saving has been realized with the original motor developed by Brother. The power consumption of S-6200A is 41% less than that with AC-servo motor and 23% less than that of the SL-2110. And, the 13 % less than that of the JUKI DDL-8700.

F.A.Q.

Is there any disadvantage of equipping the motor behind the
machine head?
It is impossible to install the standard puller. For particular process, we recommend S-7200C or SL-1110. And also if you would like to install the presser foot lifting, please use the under-table type.

What is the difference of lubrication with DDL-8700?
The JUKI’s DDL-8700 is the pumping forced lubrication type. It’s not the clean sewing because it supplies and recoveries much oil by pressurization.

Is the lubrication system the same as the S-7200C’s minimum
lubrication system?
It’s not the same. S-6200A’s minimum lubrication system is the same as SL-2110’s. While S-7200C uses oil tank, S-6200A uses oil pan.

Are the panels the same asS-7200C’s panel?
The panel itself is the same but, mounting plates are different. They are not interchangeable. Also their names are also changed to G1A and G5A for S-6200A.

Is the thread wiper interchangeable with that of SL-2110?
The length of harnesses is different so parts codes are not the same.

Does S-6200A have the functions of condensed stitching and floating foot sewing which with S-7200C?
Unfortunately, S-6200A doesn’t have those functions. When sewing heavy materials, use the vibration function of S-6200A(Brother’s patent).

Is there the 380V?
You can equip the same transformer box as S-7200C’s.
