If you are crazy about quilting the Husqvarna Viking Quilt Designer is a superb selection!

Quilt Designer II features the exclusive patented Sensor System that gives you unique qualities to make your sewing easier. Included with your
machine, are four Stitch d-Cards with a total of 92 attractive stitches plus an alphabet. These cards are made with the latest technology and
offer one-touch stitch selection on the large touch screen. You can also purchase more Stitch d-Cards as needed.

Quilt Designer lets you concentrate on the creative process and create exquisite quilts faster than ever

  • Exclusive Sensor System
  • Exclusive Sewing Advisor
  • Exclusive Sensor Foot Pressure
  • Exclusive Selective Thread Cutter
  • Stitch d-Cards
  • Work space
  • Quilter's Kit Optional
  • Needle Threader
  • Sideway sewing
  • Electronic Thread Cutter
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications
The most inventive features of the Quilt Designer II include:

The Exclusive Sensor System that automatically lowers the presser foot, raises it when it's time to pivot, and senses the thickness of the fabric and moves over seams and varying thicknesses with even pressure.

The Sewing Advisor instantly sets the ideal stitch, stitch width and length, thread tension, sewing speed, sensor foot pressure and recommends the presser foot and needle when you select your fabric type and weight and sewing technique.

Exclusive Sensor Foot Pressure automatically adjusts the presser foot pressure to the thickness of the fabric.

Exclusive Selective Thread Cutter cuts the top and bobbin thread close to the fabric when you finish embroidering or sewing. You can also program thread cut to automatically trim a programmed sequence.

Other quilting features include:

  • A unique design that gives you plenty of space.
  • longest free arm of any home sewing machine
  • The largest workspace inside the sewing arm.
  • Built-in needle threader

  • EXCLUSIVE SENSOR SYSTEM:

  • EXCLUSIVE SENSOR FOOT LIFT
    Lowers automatically for every sewing technique.
    Four positions: up, extra lift, pivot, and down. Your hands are free to guide fabric.

  • EXCLUSIVE SENSOR FOOT PIVOT
    Stop with needle down, foot floats on fabric.

  • EXCLUSIVE SENSOR FOOT PRESSURE
    Automatically adjusts for any fabric thickness as you sew. Perfect even feed results.

    EXCLUSIVE SELECTIVE

  • THREAD CUTTER
    Automatically cuts the top and bobbin thread when you finish embroidering, or sewing buttonhole with the Sensor Buttonhole Foot . One touch cuts the top and bobbin thread when you finish sewing. Touch while sewing to finish stitch pattern at end, cut top and bobbin thread and raise presser foot automatically.

  • EXCLUSIVE SEWING ADVISOR
    Enter the type of fabric and the sewing technique, instantly the correct stitch, stitch width and length, thread tension, sewing speed and presser foot pressure are selected. Override anytime for specialty techniques.

  • LARGE TOUCH SCREEN
    One touch stitch selection. Help screen. See and edit stitch programs before you sew. Changes appear instantly.
Included Accessories
Hard Case
Foot Control
Power Cord
35 Bobbins
4 Spool Caps
2 Stitch D Cards
Handi Bobs
S Foot
C Foot
E Foot
B Foot
F/P Foot
J Foot
A Foot
D Foor
Clear Foot

  • Sew With or Without Foot Control
    Touch START to sew and to stop sewing. Perfect for long rows of stitching.

  • Truly Automatic Self Adjusting Tension
    Quilt Designer II tension is set individually for every sewing technique and fabric.

  • Top and Bobbin Thread Sensor
    Quilt Designer II stops sewing and alerts you when thread runs out or breaks.

  • Snap On and Off Presser Feet
    Change presser feet quickly and easily.

  • Buttonhole Sensor Foot
    Measures buttonhole size on all weights and types of fabric as you sew. Stops automatically. Sew as many perfect buttonholes as you need.

  • Dual Lights
    Excellent illumination over work area and just above needle. Eliminates shadows in the sewing area while sewing at night.

  • Ergonomically Designed
    Up-front convenient threading, bobbin winding and placement, free arm to the front of machine, all settings at your fingertips with simple function buttons and Touch Screen. One piece aluminum casting is lightweight yet strong, long lasting and prevents vibration.

  • Selectronic Needle Stop -right
    Set needle stop up or down. Tap foot control or touch function button to move needle up or down at any time.

  • Electronic Power/Speed Control

  • Stitch by stitch control with full needle penetration at any speed.

  • Extra Lift
    The extra lift position of the exclusive Sensor Foot Lift features more lift space than other machines to slide thick and heavy quilts and fabric under the foot easily.

  • Help Menu
    Touch ? and your HELP MENU tells you everything you need to know to sew. Recommends needle type and size, stabilizer, buttonhole tips and more.

  • Bobbin Winds from Needle
    No need to unthread or rethread to wind a bobbin.

  • Automatic Bobbin Thread Pick-up
    No need to bring bobbin thread up manually.

  • Threading arrows
    GGuide top thread path for fast, easy threading.

  • Automatic Needle Threader
    Built-in needle threader eliminates tedious hand threading.

  • Speed Adjustment BR> Touch SPEED to adjust to five sewing speeds according to your sewing project and skill level. Perfect for teaching sewing.

  • Stop Function
    Touch STOP to finish stitch pattern at end and tie off automatically. Perfect for single stitch tying of quilts and quilted projects. Put into program to stop sewing at a specific stitch or program.

  • Fix Function
    Touch FIX to stop and lock any stitch instantly with tiny forward and backward

  • Instant and Permanent Reverse
    Touch reverse to sew any stitch back for lockstitch, and tie off. Touch reverse twice for continuous reverse.

  • 25 Needle Positions
    Set needle position perfectly for topstitching, zippers, quilting and specialty techniques and accessory presser feet.

  • Adjustable Stitch Length and Stitch Width
    Adjust stitch width from 0 - 6 mm and for certain stitches up to 37 mm. Adjust stitch length from 0 - 6 mm for specialty sewing.

  • Permanently Lubricated
    No oiling means no stains on fabric.

  • Jamproof Rotary Hook
    No tangled threads or threads sewn down into the machine.

  • Largest Work Space Inside Sewing Arm and Longest Free Arm
    Ergonomic design gives ample space for quilting and extra large projects. Together with Designer I, Quilt Designer II features the longest free arm in the industry.

  • Mirror Image
    Flip stitches and/or stitch programs side to side and/or end to end for unlimited creative combinations.

  • Stitch Re-start
    Touch Stitch Re-start to begin sewing at the start of any stitch. Any stitch length, width, mirror image or elongation alterations will be remembered.

  • Quick updates via Internet or at your Husqvarna Viking dealer via Personal d-Card
    Download upgrades with the help of the d-Card Reader/Writer Kit.

  • Save
    Customize your favorite stitch, save and repeat it whenever you wish.

  • Easy Programming
    See your stitch and/or lettering combinations horizontally as you put them into program.

  • Free Motion Sewing
    Choose from free motion straight stitch and free motion zigzag to create fast, fun, and easy free motion sewing.

  • Twin Needle Safety
    Enter twin needle width and your Quilt Designer II sets stitch width to eliminate broken needles.

  • Two Built-In Spool Pins
    Easy threading for twin needle and other specialty sewing and topstitching techniques.

  • Elongation
    Increase or decrease the length of decorative satin stitches and Pictogram elements with elongation. The density of the stitch remains the same.

  • Permanent Memories
    9 permanent memories, each holds 61 stitches for stitch and/or lettering programs up to 549 stitches.

  • Built in Ruler
    Ruler on front base of Quilt Designer II lets you measure ribbing and elastic at your fingertips. Convert from inches to centimeters in an instant.

  • Slide-On Accessory Tray
    Stores your bobbins, accessory feet, needles and more, right at your fingertips. Plus flatbed extension.

  • Attractive Carrying Case
    Easy to carry and protects your Quilt Designer II and accessories for storage and/or transport.


Other Images

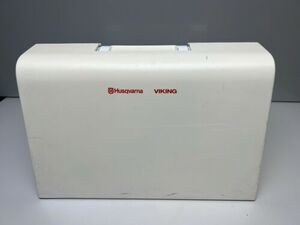

icon Hard Case Cover

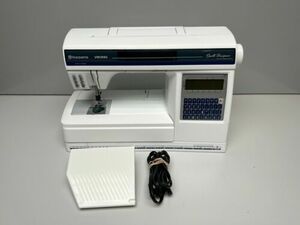

icon Includes Foot Control and Power Cord

icon Two d-Cards Included
