October 24, 2020

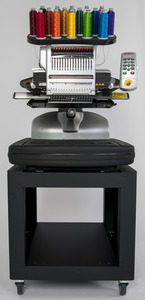

Melco Bravo Pro PkgC 16Needle 16x15* Embroidery Machine, Cart, Starter Kit+Design Shop V10 Pro+ Digitizing Vector Graphics Software, 4Hoops, 13 Extras

Melco, Amaya, Bravo, 16, Needle, 17, Hoop, Embroidery, Machine, 300, 1400, SPM, Design, Shop, Lite, Software, Dakota, Designs, Acti, Feed, Thread, Auto, Trim, LED, Light, Alum, Cast, 75Kg

Melco Bravo Pro PkgC 16 Needle 16x16” Embroidery Machine +Design Shop V10 Pro+

Our Price: $12,995.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 5-7 business days.
Condition: New In Box

Features


Everyday Financing! Checkout online using Synchrony Sewing & More Card for Melco Embroidery Machines Package C Includes: Melco Top of the Line Design Shop v10 Pro+ Digitizing Software. *Synchrony 24 Months No Interest Financing, Equal Monthly Pay. Transaction Code 424. Apply online to checkout online or by phone to 800-739-7374.

*Design Shop V10 PRO+ VECTOR Digitizing. OS Software, 84 Fonts, 2000 Designs, Edit, Resize, Hoop Select, Color Sequence Load Center Speed Trace, Convert Home & Industrial Formats to EXP OFM


Bravo Package C Major Features:
Extended US Warranty: 1 year limited warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Melco is the Only Embroidery Machine
  • Type and # of Heads: 1 Arm & Bed
  • # of Needles: 16
  • Maximum Tubular flat hoop size (X by Y): 360mm x 300mm (14.17"x 11.8")
    Effective sewing area is 1/2" less.
  • Removable Table Top with Tool Bays: Yes
  • Min/Max Sew Speed Flat Hoops: 300-1100 SPM
  • Min/Max Sew Speed Optional Cap Hoop: 300-1100 SPM
  • Stitch Length Range: Only Limited by Hoop Size
  • User Interface: (OS Lite only)
  • Machine Configuration: single head, cannot be linked with other machines.
  • Simplified User Interface: Step by Step Guide Software
  • Thread Feed Technology: Patented Acti-Feed Auto Tension
  • Thread Break Detection: Yes
  • Automatic Thread Trimmer: Yes
  • Lighting Type Cold Bright: Cold bright LED
  • Power Supply (V): 90-260V (Single Phase, 50/60 HZ, 4A)
  • Power Consumption (W): Typical: 200 Watts Max: 650 Watts
  • Temperature Range: 15-40° C
  • Humidity: Max 85% RH
  • Installation Category (overvoltage): II
  • Pollution Degree: 2
  • Motor Type(s): Servo
  • Motor Capacity (kV):
    X and Z: 100 Watts
    Y: 250 Watts
  • Machine Construction Material: Aluminum Frame

    Physical Specifications with Cart (option)
  • Width: 724mm (28.5")
  • Height: 1584mm (62.4")
  • Depth: 944mm (37.2")
  • Weight: 95.4kg (210.3 lbs)

    Physical Specifications without Cart (standard)
  • Width: 724mm (28.5")
  • Height: 950.9mm (37.4")
  • Depth: 737mm (29.0")
  • Weight: 75kg (165lbs)

    Customer On Site Training $1,250

    Melco Service Site for Technical Support and System Requirement Information

    Melco Software System Requirements

    Please review our Freight LTL Shipping Policies Ships Ground Freight only.* For delivery please select options. "Lift Gate" which means a goods lifting platform installed at the rear of the delivery truck that facilitates the unloading of cargo from truck bed to the ground. Most shipments will require a lift gate, if there is not a loading dock, or fork lift available for delivery.

    Melco charges $1250 for on site training anywhere in the USA 48 states, including at their Denver offices.. Melco charges for a minimum of two days with overnight stay and meals built into the cost for their training package for on site training.
    Melco Authorised Technicial and Trainer Ed Orantes states "The wife and I (working separately to cover more ground) charge by the hour to give the customer a more customized offer for their training needs. Overnight stay is only necessary when applicable. Wife is currently in Biloxi, Ms. on a training job as we speak. She sold her retail business a year ago and has been Melco certified to train since January with over 13 years experience." Thanks, Ed Orantes email emservice@att.net or call 504-258-6260 for your set up, sew off, training or service needs.
    One 8 hour day of training is $550.
    Two 8 hour days is $500 per day.
    Overnight stays are $100 per night.
    Travel is $1.25 per mile (one direction only).
    That's approximately 275 miles to Hallsville, Tx.
    Hourly training is $85 per hour if customer doesn't request a full day of training.

    Melco Bravo Short Video


    Melco Bravo Package C Software Features and Functions


    Melco Bravo 3D Embroidery Sewing Foam on Caps


    Melco Bravo Needle Magnet Orientation Demo


    Melco Bravo Demo Troubleshooting

Melco Bravo PkgB - 16 Needle 14x12" Embroidery Machine 1000SPM, 0% Financing. 10 Extras,

Melco, Amaya, Bravo, 16, Needle, 14, 12, Hoop, Embroidery, Machine, 300-1000SPM, Design, Shop, Lite, Software, Dakota, 1000, Acti, Feed, Thread, Auto, Trim, LED, Light, Aluminum, Cast, 75, Kg

Melco Bravo PkgB - 16 Needle 14x12" Embroidery Machine 1000SPM, 0% Financing. 10 Extras,

Our Price: $10,495.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 5-7 business days.
Condition: New In Box

Features

*Design Shop Digitizing, OS Software, 84Fonts, 2500Designs, Edit, Resize, Hoop Select, Color Sequence, Load, Center, Speed, Trace, Convert Home & Industrial Formats to EXP OFM

Ask about Everyday Financing! Package B Includes: Full Digitizing w/Vector Conversion V9 with Melco Bravo Machine. *Synchrony 24 Months No Interest Financing for Equal Monthly Pay plus any applicable taxes. Transaction Code 424. Apply online. GE will advise you of your maximum amount or full credit that you can use towards purchase. Interest Free Financing Orders must be called into 800-739-7374 after Synchrony approval.

Exclusive Great Notions 15,000 Embroidery Designs Pack DVD. Easiest Way to Start an Embroidery Business without having to learn software! Great Notions Designs are in Industrial DST, Condensed CND, Bernina EXP, Brother and Babylock PES, and Janome JEF Formats. A $7500+ Value Free with Select Brother, Janome and Bernina Embroidery Machines.

Package “B” Includes:
  • Machine

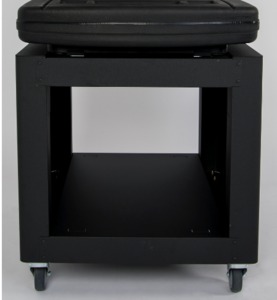

  • Cart

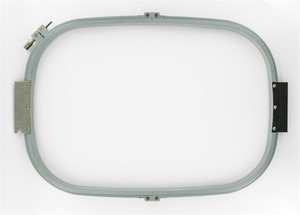

  • 4 Hoop set (3.5”, 4.68”, 5.85”, 14.25” x 11.75”)
  • Power Cord
  • Ethernet Crossover Cable
  • Design Shop Software (Digitizing with Vector Graphic Conversion Option)
  • Dakota Quick Click Program
  • Action Illustrated 1000 Design Pack
  • Small Business Start Up Guide.(PDF file) Provided
  • New Operating Software with more functionality
  • Webinar Software Training

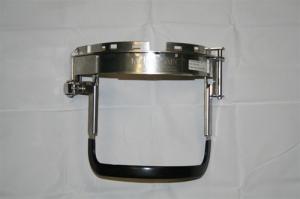

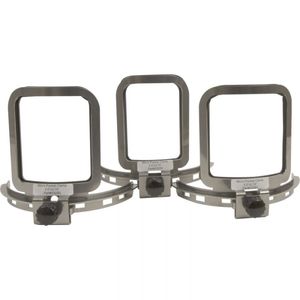

    Optional: Cap Driver, 2 Frames, Cap Gauge, Micro Pocket Hoops

    Click Here for the 2014 Comparision of Melco Type A, B, and C Package Comparison (.PDF)


    The Main Difference between the A,B, and C packages are the software, and the capability that it provides. The machines are the same in fact the A Package could be upgraded to the C Package later on buy purchasing the software. This machine is a great investment, and the owner can upgrade this machine without having to buy a separate unit.

    The Melco BRAVO is a commercial and professional 16 needle embroidery machine capable of embroidering a wide variety of products at speeds up to 1000 stitches per minute.

    Orginally based on the world class AMAYA XT platform (same head), the BRAVO allows for optional cap embroidery and small pocket embroidery. A wide selection of additional options are available for the BRAVO, making it a perfect entry-level embroidery machine for companies with a limited budget.

    If you are thinking of investing in embroidery production on a tight budget, the Melco BRAVO is a great place to start.

    The BRAVO 16 needle professional embroidery machine offers businesses of any size powerful embroidery capabilities at an affordable price.

    The BRAVO can embroider apparel, caps, bags, and a wide variety of textiles with beautiful quality. Orginally based on the powerful AMAYA XT embroidery machine platform, the BRAVO produces all the professional quality embroidery your customers will keep coming back to you for.

    Personalized and embroidered goods are in demand and the BRAVO is built to produce a wide variety of products to meet these demands.

    The BRAVO can embroider: Tubular or Flat Shirts, Blankets, Bags, Jackets, Pants, Jeans, Leather. Hats and Pockets with Optional Cap and Cylinder Equipment.

    Includes DesignShop V9 Lite Machine Embroidery and Design Software

    Convert nearly any piece of artwork into digital embroidery files with ease. DesignShop V9 has powerful graphics capabilities that perform quick conversion-to-stitches with the ability to customize. You can also change stitches to vector files on-screen without using another program or switching to another screen.

  • NEW! Enhanced screen layout
  • NEW! Object properties window
  • NEW! File info. in open dialog box
  • NEW! Realistic display of trimmed/non trimmed thread
  • NEW! Property toolbar
  • Enhanced entry & exit point symbols
  • Custom hoop selections
  • Show stitches in 3D
  • Unlimited undo/redo
  • Graphical zoom in and out
  • Show/hide stitches, wireframe points lines,connectors, entry/exit points and elements
  • Print: Design, status, note, company logo
  • Drawing speeds (slow to fast redraw)
  • Project tree
  • Layer by color
  • Color palette and navigator
  • Units of measure (English, metric, points)
  • Display embroidery hoops for commercial machines
  • NEW! Envelope for lettering
  • NEW! Customize both envelope and perspective baselines by adding points along the line
  • Control point editing
  • Expanded stitch editing
  • Display alphabet code sheets
  • Automatic borders: • Satin or walk/bean stitch • Density/column width adjust • Automatic underlays • Color changes/border sequence
  • Scale, rotate and slant individual letters
  • On-screen lettering
  • Lettering properties simplified
  • Multi-color, symbol, monogramming
  • Change height, width and slant
  • Change color of individual letters
  • Closest, bottom or as digitized connections
  • Scale, rotate and slant lettering elements
  • Font (alphabet) preview
  • Auto fabric adjustment
  • Auto underlays
  • Change letter stitch order (center out, right to left, left to right)
  • Change line stitch order (top to bottom, line wrapping, bottom up)
  • NEW! Color handling system
  • NEW! True element bounding boxes
  • NEW! Scale toolbar
  • X,Y pull compensation
  • Insert, delete move and change input points
  • Group/ungroup and search
  • Scale and rotate
  • Cut, copy, paste and duplicate
  • NEW! Backup system
  • NEW! Improved help system
  • NEW! Internet update
  • NEW color sequence ability
  • Direct link from DesignShop V9 to BRAVO
  • Additional formats (.pat, .gnc, .emd, .shv)
  • The maximum sew field for package A and B is 14.25” x 11.75’ (36cm x 30cm)


    Click Here for Melco Small Business Planning Guide

    Prerecorded Webinar Training
    You can go to www.melcouniversity.com and click on the “media” tab to view prerecorded training webinars for the Melco Bravo.

    Note: The YouTube Videos below on Melco XTS, Design Shop and OS Software may include more features than the Bravo, DesignShop Lite software and OS Lite user interface. Read entire page for what features are included with Bravo.

    Melco Embroidery Machine Amaya XT, includes Bravo features

    Melco Embroidery Machine SETTINGS TAB in Amaya OS

    Melco Embroidery Machine TRACE DESIGNS in Amaya OS

    Melco Embroidery Machine LOADING DESIGNS in Amaya OS

    Melco Embroidery Machine HOOP SELECTION in Amaya OS

    Melco Embroidry Machine SETTING SEWING SPEED in Amaya OS

    Melco Embroidery Machine CENTERING DESIGN in Amaya OS

    Melco Embroidery Machine COLOR SEQUENCING in Amaya OS

    Melco Embroidery Machine MOVE TAB in Amaya OS

    Melco Embroidery Machine COLOR GROUPING in Amaya OS

    Melco Embroidery Machine SETTINGS TAB in Amaya OS

    Melco Embroidery Machine RESET DESIGNS in Amaya OS

    Melco Embroidery Machine DESIGN ORIENTATION in Amaya OS

    Melco Embroidery Machine CENTER HOOP

    Melco Embroidery Machine MACHINE VIEW in Amaya OS

    Melco Embroidery Machine SETTINGS BY COLOR IN Amaya OS

    Click Here for Melco Warranty Details(.PDF)

    Melco charges $1250 for on site training anywhere in the USA 48 states. Melco charges for a minimum of two days with overnight stay and meals built into the cost for their training package.
    Melco Authorised Technicial and Trainer Ed Orantes states "The wife and I (working separately to cover more ground) charge by the hour to give the customer a more customized offer for their training needs. Overnight stay is only necessary when applicable. Wife is currently in Biloxi, Ms. on a training job as we speak. She sold her retail business a year ago and has been Melco certified to train since January with over 13 years experience." Thanks, Ed Orantes email emservice@att.net or call 504-258-6260 for your set up, sew off, training or service needs.
    One 8 hour day of training is $550.
    Two 8 hour days is $500 per day.
    Overnight stays are $100 per night.
    Travel is $1.25 per mile (one direction only).
    That's approximately 275 miles to Hallsville, Tx.
    Hourly training is $85 per hour if customer doesn't request a full day of training.
Extended US Warranty: 1 year limited warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

  • Type and # of Heads: 1 Arm & Bed
  • # of Needles: 16
  • Maximum Tubular flat hoop size (X by Y): 360mm x 300mm (14.17"x 11.8")Effective sewing area is 1/2" less.
  • Removable Table Top with Tool Bays: Yes
  • Min/Max Sew Speed Flat Hoops: 300-1000 SPM
  • Min/Max Sew Speed Optional Cap Hoop: 300-1000 SPM
  • Stitch Length Range: Only Limited by Hoop Size
  • User Interface: (OS Lite only)
  • Machine Configuration: single head, cannot be linked with other machines.
  • Simplified User Interface: Step by Step Guide Software
  • Thread Feed Technology: Patented Acti-Feed Auto Tension
  • Thread Break Detection: Yes
  • Automatic Thread Trimmer: Yes
  • Lighting Type Cold Bright: Cold bright LED
  • Power Supply (V): 90-260V (Single Phase, 50/60 HZ, 4A)
  • Power Consumption (W): Typical: 200 Watts Max: 650 Watts
  • Temperature Range: 15-40° C
  • Humidity: Max 85% RH
  • Installation Category (overvoltage): II
  • Pollution Degree: 2
  • Motor Type(s): Servo
  • Motor Capacity (kV):
    -X and Z: 100 Watts
    -Y: 250 Watts
  • Machine Construction Material: Aluminum Frame


    Physical Specifications with Cart (option)
  • Width: 724mm (28.5")
  • Height: 1584mm (62.4")
  • Depth: 944mm (37.2")
  • Weight: 95.4kg (210.3 lbs)

    Physical Specifications without Cart (standard)
  • Width: 724mm (28.5")
  • Height: 950.9mm (37.4")
  • Depth: 737mm (29.0")
  • Weight:75kg (165lbs)

    Customer On Site Training $1,250

    Melco Service Site for Technical Support and System Requirement Information

    Melco Software System Requirements

    Please review our Freight LTL Shipping Policies Ships Ground Freight only.* For delivery please select options. "Lift Gate" which means a goods lifting platform installed at the rear of the delivery truck that facilitates the unloading of cargo from truck bed to the ground. Most shipments will require a lift gate, if there is not a loading dock, or fork lift available for delivery.

Melco Bravo Basic PackageA 16 Needle 14x12 Embroidery Machine 1000SPM +Design Shop Lite Software, 10 Extras,

Melco, Amaya, Bravo, 16, Needle, 14x12", Hoop, Embroidery, Machine, 300-1000SPM, Design, Shop, Lite, Software, Dakota, 1000, Designs, Acti, Feed, Thread, Auto, Trim, LED, Light, Aluminum, Cast, 75Kg, free, cap, equipment

24125: Melco Bravo Basic PkgA 16 Needle 14x12 Embroidery Machine+Design Shop Lite

Our Price: $9,495.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 5-7 business days.
Condition: New In Box

Features

Ask about Everyday Financing! Package A Includes: Design Shop Lite Software with Melco Bravo Embroidery Machine. *Synchrony 24 Months No Interest Financing for Equal Monthly Pay plus any applicable taxes. Transaction Code 424. Apply online. GE will advise you of your maximum amount or full credit that you can use towards purchase. Interest Free Financing Orders must be called into 800-739-7374 after Synchrony approval.

Exclusive Great Notions 15,000 Embroidery Designs Pack DVD. Easiest Way to Start an Embroidery Business without having to learn software! Great Notions Designs are in Industrial DST, Condensed CND, Bernina EXP, Brother and Babylock PES, and Janome JEF Formats. A $7500+ Value Free with Select Brother, Janome and Bernina Embroidery Machines.

*Design Ship Lite V9 & OS Software: 84 Fonts, 500+ Designs, Edit, Resize, Hoop Select, Color Sequence, Load, Center, Speed, Trace, Convert Home & Industrial Formats to .EXP format & .OFM Format

Package “A” Includes:
  • Machine
  • Cart

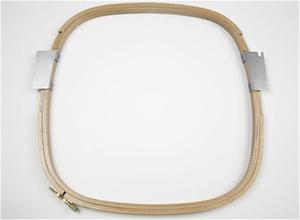

  • 4 Square Hoop Set: (3.5", 4.68", 5.85", 14.25" and 11.75")
  • Power Cord US 110V
  • 25' Ethernet Crossover Cable
  • Design Shop Lite Software
  • 2000 Embroidery Designs:
    -Dakota Quick Click 1000 Free Design Program
    -Action Illustrated 1000 Design Pack
  • Small Business Start Up Guide.(PDF file Download)
  • New Operating Software with more functionality
  • Webinar Software Training

    Optional: Cap Driver, 2 Frames, Cap Gauge, Micro Pocket Hoops

    Click Here for the 2014 Comparision of Melco Type A, B, and C Package Comparison (.PDF)


    The Main Difference between the A,B, and C packages are the software, and the capability that it provides. The machines are the same in fact the A Package could be upgraded to the C Package later on buy purchasing the software. This machine is a great investment, and the owner can upgrade this machine without having to buy a separate unit.

    The Melco BRAVO is a commercial professional 16 needle embroidery machine capable of embroidering a wide variety of products at speeds up to 1000 stitches per minute.

    Originally based on the world class AMAYA XT platform (same head), the Melco BRAVO allows for optional cap embroidery and small pocket embroidery. A wide selection of additional options are available for the BRAVO, making it a perfect entry-level embroidery machine for companies with a limited budget.

    If you are thinking of investing in embroidery production on a tight budget, the Melco BRAVO is a great place to start.

    The BRAVO 16 needle professional embroidery machine offers businesses of any size powerful embroidery capabilities at an affordable price.

    The BRAVO can embroider apparel, caps, bags, and a wide variety of textiles with beautiful quality. Originally based on the powerful AMAYA XT embroidery machine platform, the Melco BRAVO produces all the professional quality embroidery your customers will keep coming back to you for.

    Personalized and embroidered goods are in demand and the BRAVO is built to produce a wide variety of products to meet these demands.

    The BRAVO can embroider: Tubular or Flat Shirts, Blankets, Bags, Jackets, Pants, Jeans, Leather. Hats and Pockets with Optional Cap and Cylinder Equipment.

    Package A Includes DesignShop V9 Lite Machine Embroidery and Design Software

    Convert nearly any piece of artwork into digital embroidery files with ease. DesignShop V9 has powerful graphics capabilities that perform quick conversion-to-stitches with the ability to customize. You can also change stitches to vector files on-screen without using another program or switching to another screen.

  • NEW! Enhanced screen layout
  • NEW! Object properties window
  • NEW! File info. in open dialog box
  • NEW! Realistic display of trimmed/non trimmed thread
  • NEW! Property toolbar
  • Enhanced entry & exit point symbols
  • Custom hoop selections
  • Show stitches in 3D
  • Unlimited undo/redo
  • Graphical zoom in and out
  • Show/hide stitches, wireframe points lines,connectors, entry/exit points and elements
  • Print: Design, status, note, company logo
  • Drawing speeds (slow to fast redraw)
  • Project tree
  • Layer by color
  • Color palette and navigator
  • Units of measure (English, metric, points)
  • Display embroidery hoops for commercial machines
  • NEW! Envelope for lettering
  • NEW! Customize both envelope and perspective baselines by adding points along the line
  • Control point editing
  • Expanded stitch editing
  • Display alphabet code sheets
  • Automatic borders: • Satin or walk/bean stitch • Density/column width adjust • Automatic underlays • Color changes/border sequence
  • Scale, rotate and slant individual letters
  • On-screen lettering
  • Lettering properties simplified
  • Multi-color, symbol, monogramming
  • Change height, width and slant
  • Change color of individual letters
  • Closest, bottom or as digitized connections
  • Scale, rotate and slant lettering elements
  • Font (alphabet) preview
  • Auto fabric adjustment
  • Auto underlays
  • Change letter stitch order (center out, right to left, left to right)
  • Change line stitch order (top to bottom, line wrapping, bottom up)
  • NEW! Color handling system
  • NEW! True element bounding boxes
  • NEW! Scale toolbar
  • X,Y pull compensation
  • Insert, delete move and change input points
  • Group/ungroup and search
  • Scale and rotate
  • Cut, copy, paste and duplicate
  • NEW! Backup system
  • NEW! Improved help system
  • NEW! Internet update
  • NEW color sequence ability
  • Direct link from DesignShop V9 to Bravo
  • Additional formats (.pat, .gnc, .emd, .shv)
  • The maximum sew field for package A and B is 14.25” x 11.75’ (36cm x 30cm)

    Click Here for Melco Small Business Planning Guide

    Prerecorded Webinar Training
    You can go to www.melcouniversity.com and click on the “media” tab to view prerecorded training webinars for the Melco Bravo.

    Note: The YouTube Videos below on Melco XTS, Design Shop and OS Software may include more features than the Bravo, DesignShop Lite software and OS Lite user interface. Read entire page for what features are included with Bravo.

    Melco Embroidery Machine Amaya XT, includes Bravo features

    Melco Embroidery Machine SETTINGS TAB in Amaya OS

    Melco Embroidery Machine TRACE DESIGNS in Amaya OS

    Melco Embroidery Machine LOADING DESIGNS in Amaya OS

    Melco Embroidery Machine HOOP SELECTION in Amaya OS

    Melco Embroidry Machine SETTING SEWING SPEED in Amaya OS

    Melco Embroidery Machine CENTERING DESIGN in Amaya OS

    Melco Embroidery Machine COLOR SEQUENCING in Amaya OS

    Melco Embroidery Machine MOVE TAB in Amaya OS

    Melco Embroidery Machine COLOR GROUPING in Amaya OS

    Melco Embroidery Machine SETTINGS TAB in Amaya OS

    Melco Embroidery Machine RESET DESIGNS in Amaya OS

    Melco Embroidery Machine DESIGN ORIENTATION in Amaya OS

    Melco Embroidery Machine CENTER HOOP

    Melco Embroidery Machine MACHINE VIEW in Amaya OS

    Melco Embroidery Machine SETTINGS BY COLOR IN Amaya OS

    Click Here for Melco Warranty Details(.PDF)

    Melco charges $1250 for on site training anywhere in the USA 48 states. Melco charges for a minimum of two days with overnight stay and meals built into the cost for their training package.
    Contact Melco Authorised Technician and Trainer Ed Orantes. Email emservice@att.net or call 504-258-6260 for contract set up, sew off, training or service needs.
    One 8 hour day of training is $550.
    Two 8 hour days is $500 per day.
    Overnight stays are $100 per night.
    Travel is $1.25 per mile (one direction only).
    That's approximately 275 miles to Hallsville, Tx.
    Hourly training is $85 per hour if customer doesn't request a full day of training.
Extended US Warranty: 1 year limited warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

  • Type and # of Heads: 1 Arm & Bed
  • # of Needles: 16
  • Maximum Tubular flat hoop size (X by Y): 360mm x 300mm (14.17"x 11.8")Effective sewing area is 1/2" less.
  • Removable Table Top with Tool Bays: Yes
  • Min/Max Sew Speed Flat Hoops: 300-1000 SPM
  • Min/Max Sew Speed Optional Cap Hoop: 300-1000 SPM
  • Stitch Length Range: Only Limited by Hoop Size
  • User Interface: (OS Lite only)
  • Machine Configuration: Single head, cannot be linked with other machines.
  • Simplified User Interface: Step by Step Guide Software
  • Thread Feed Technology: Patented Acti-Feed Auto Tension
  • Thread Break Detection: Yes
  • Automatic Thread Trimmer: Yes
  • Lighting Type Cold Bright: Cold bright LED
  • Power Supply (V): 90-260V (Single Phase, 50/60 HZ, 4A)
  • Power Consumption (W):
    -Typical: 200
    -Watts Max: 650 Watts
  • Temperature Range: 15-40° C
  • Humidity: Max 85% RH
  • Installation Category (overvoltage): II
  • Pollution Degree: 2
  • Motor Type(s): Servo
  • Motor Capacity (kV): X and Z: 100 Watts Y: 250 Watts
  • Machine Construction Material: Aluminum Frame

    Physical Specifications with Cart (option)
  • Width: 724mm (28.5")
  • Height: 1584mm (62.4")
  • Depth: 944mm (37.2")
  • Weight:95.4kg (210.3 lbs)

    Physical Specifications without Cart (standard)
  • Width: 724mm (28.5")
  • Height: 950.9mm (37.4")
  • Depth: 737mm (29.0")
  • Weight: 75kg (165lbs)

    Customer On Site Training $1,250

    Melco Service Site for Technical Support and System Requirement Information

    Melco Software System Requirements

    Please review our Freight LTL Shipping Policies Ships Ground Freight only.* For delivery please select options. "Lift Gate" which means a goods lifting platform installed at the rear of the delivery truck that facilitates the unloading of cargo from truck bed to the ground. Most shipments will require a lift gate, if there is not a loading dock, or fork lift available for delivery.

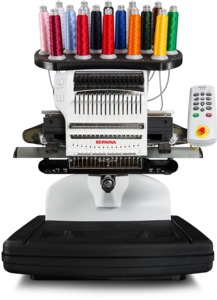

Bernina E16 Demo 16 Needle 16x15" Embroidery Machine 1400SPM, Narrowest Arm, Auto Tension, Chenille, Laser Pointer, 2 Hoops, Cash or Check, See Extras

Bernina E16B, Demo,  16 Needle, 16x14" Embroidery, Machine, 1400SPM, Narrowest Cylinder Arm, Auto Tension, Laser Pointer, Lafayette Store

65056: Bernina E-16 16 Needle Embroidery Machine E16, Narrowest Cylinder Arm
Availability: Retail Store Only
Condition: Floor Model

Features

The Bernina E16B is the perfect partner for your home studio or business with 16 needles, speed of up to 1,400 spm (stitches per minute), automatic tension settings and a narrow cylindrical arm for sleeves and other tight spaces. Complete tasks like a pro with the BERNINA E 16, whether embroidering a baseball cap, small patch, big shopping bags or jacket backs.

WHAT'S UNDER THE HOOD? Multi Needle Embroidery Features of the BERNINA E 16 include:

– 16 needles
– High-speed embroidery up to 1,400 spm
– True commercial embroidery system
– Extra large embroidery field 400 × 350 mm
– Patented narrow cylindrical lower arm
– Smallest cylindrical lower arm in the industry
– Standard hoops (width × height): 36 × 30 cm, 44 × 30 cm, 12 cm round, 15 cm round
– Go Pro operator’s kit
– Go Pro tension system (fabric based)
– Go Pro design library of 1,000 designs
– Go Pro BERNINA hook system
– Go Pro automatic thread trim
– Adjustable presser foot height
– Appliqué command
– Laser alignment
– Rotation 1, 90, 180
– Move to position
– Move to color
– Move to stitch
– Stock colors
– Bright LEDs
– Network up to six machines
– Extra large cap embroidery field (36 × 8.2 cm)

BERNINA E 16 at a glance

  • Increased Processing Power
    Additional power provides enhanced overall performance.
  • Flexible Multi-Head Production
    Scalable multi-head system that leaves standard multi-head machines in the dust - up to 50% more productive!
  • Up to 75% More Efficient
    Progressive speed changes combine with needle case & pantograph refinements make BERNINA E 16 more efficient than previous models.
  • Up to 30% More Stitches per Bobbin
    Fewer bobbin changes mean reducing downtime per machine, increasing production efficiency exponentially.
  • Outstanding Stitch Quality
    Embroidery has never looked better on popular products like stretchy fabrics, performance wear or dri-fit shirts, hats caps and more.
  • Large Storage Capacity
    The BERNINA E 16 is capable of loading the largest embroidery designs.

    Features No Other Commercial Embroidery Machine Can Touch:

    MULTI-HEAD FLEXIBILITY
    Imagine a scalable embroidery system that allows you/your business to your embroidery production as-needed. The BERNINA E 16 grows with YOU! This modular embroidery system is simply better than a standard multi-head embroidery machine, because you can add single-heads to the system at any time. You also have the freedom to configure your embroidery machines to match your production needs. Even when in multi-head configurations, individual heads can be setup for embroidering on different products. FOR EXAMPLE: you may have three heads running baseball caps and one running a polo shirt.

    LASER ALIGNMENT
    Embroidery postitioning is easy & accurate with Laser Alignment.

    THREAD SYSTEM
    The BERNINA E 16 delivers the precise amount of thread needed at any given time, resulting in the highest quality stitching at the fastest speeds possible.

    SMALL, CYLINDRICAL LOWER ARM
    Embroidery on socks, shirt pockets, golf club covers and other tight spaces is possible due to the small size of the lower arm on the BERNINA E 16.
Extended US Warranty: 5 year limited warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Bernina User Interface Manual.

Check out Tutorials for the Bernina E16 Here

BERNINA E 16 - The Perfect Partner for Home, Studio or Business
With 16 needles, speeds of up to 1,400 stitches per minute (spm), automatic tension settings, and a narrow cylindrical arm—the BERNINA E 16 will complete the task like a pro—whether embroidering a jacket back or small pocket.

Our cutting-edge machines are equipped with numerous innovative functions and programs. Here, we provide you with an overview of what your preferred machine is capable of, and tell you all about the advantages of the BERNINA E 16.
Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.
Multi Needle Embroidery

BERNINA E 16
Needles 16
High-speed embroidery up to spm 1,400
True commercial embroidery system
Extra large embroidery field 400 × 350 mm
Patented narrow cylindrical lower arm
Smallest cylindrical lower arm in the industry
Standard hoop 36 × 30 cm
Standard hoop 44 × 30 cm
Standard hoop 12 cm round
Standard hoop 15 cm round
Go Pro operator’s kit
Go Pro tension system (fabric based)
Go Pro design library of 1,000 designs
Go Pro BERNINA hook system RL
Go Pro automatic thread trim
Adjustable presser foot height
Appliqué command
Laser alignment
Rotation 1, 90, 180 degrees
Move to position
Move to color
Move to stitch
Stock colors
Bright LEDs
Network up to six machines
Extra large cap embroidery field (36 × 8.2 cm)
Cap hoops and driver opt.
Specialty frames and hoops opt.
Three sizes of pocket frames opt.
Compatible with BERNINA Embroidery Software 7 opt.
Compatible with BERNINA Exclusive Design Collections opt.

Firmware Update V1.04.97
Please read the release notes carefully.
Update Release Notes.
User Manual Rev082115.
PC requirements.
Installation and First Time Start Up Instruction.

The following process below including the graphics is shown in these Release Notes

Automatic Update Process:
1. Make sure that you have Internet Connection to update Online.
2. Attach the BERNINA E 16 dongle.
3. Check to insure that the Emergency Stop on the Control Panel is released.
4. Open the BERNINA UI. When the “?” question mark appears
on the screen, turn on the machine.
5. Proceed to the Advanced Setting Screen.
6. Click on the Update Icon
7. Follow the instructions on screen
8. Machine is ready for stitching.

BERNINA E 16 Review

Eileen Roche Machine Embroidery Blog on Bernina E16B

Introducing the BERNINA E 16 multi-needle embroidery machine.
Meet the new BERNINA E 16, our 16 needle professional quality embroidery machine! Faster, more professional and larger embroidery than ever before! Perfect for home, studio or commercial use. Join us and see the amazing features of the BERNINA E 16.

BERNINA E 16 Multi-needle Embroidery Machine – The Perfect Partner for Home, Studio or Business
With 16 needles, speeds of up to 1,400 stitches per minute (spm), automatic tension settings, and a narrow cylindrical arm—the BERNINA E 16 will complete the task like a pro—whether embroidering a jacket back or small pocket. Personalize team uniforms and caps, monogram stylish totes, commemorate a special occasion, use the Chenille technique for a special 3-D effect, or complete an elaborate embroidered quilt—the results will be everything you ever dreamed of.

More You Tube Videos on Bernina E16B Needle Embroidery Machine

BERNINA International AG warrants this Product for a period of twenty (20) years against defective materials and/or workmanship, five (5) years on ciruit boards, and two (2) years electrical parts.

Bernina E16 OS-V1.08.123 Download

20 YEAR LIMITED WARRANTY ON BERNINA MACHINES
BERNINA International AG warrants this Product for a period of twenty (20) years against defective materials and/or workmanship, five (5) years on ciruit boards, and two (2) years electrical parts.

Bernina E16: 10 steps to solve your thread breaking problems:

Bernina Boys E16 Hook Removal to Check Timing

BERNINA Q Series Tutorial: Bobbin Tension Gauge


You Tube Channel for Educational Tutorial Videos

Bernina E16 PLUS 16 Needle Embroidery Machine

Bernina E16 PLUS, E16, New, 16 Needle, 16x14" Embroidery, Machine, 1400SPM, Narrowest Cylinder Arm, Auto Tension, Laser Pointer

Bernina E16 PLUS 16 Needle Embroidery Machine

Our Price: $15,995.00
Prices are subject to change, and only current prices will be honored.

Availability: Retail Store Only
Condition: New In Box

Features

* AllBrands retail stores in TX and LA, Call 800-739-7374

*Financing Available*
*Up to 48 Months Bernina Credit Card Fixed Payment No Interest Financing with approved credit! Click HERE to Apply Online.

With commercial class construction and reliability combined with an innovative feature set that makes it intuitive and fun to use, the BERNINA E 16 PLUS offers a compelling upgrade path for prosumers wanting to take their embroidery to the next level.

New Upgrades from the E 16:
  • Redesigned thread tree to accommodate a wider variety of thread
  • Hoop arm upgraded to accommodate heavier goods without flexing
  • New, improved trimmer is now a movable blade under the needle plate (makes the tails shorter)
  • Improved hook guard door opens wider, and released by thumb screw
  • Improved retaining finger

    BERNINA E 16 PLUS at a glance
  • Industry's smallest cylindrical lower arm
  • 400 mm x 350 mm embroidery field
  • Up to 1,400 SPM
  • Automatic thread tension system
  • Laser alignment
  • 16 striking thread colors
  • Fancy stitches / micro chenille
  • Industry’s largest embroidery field for caps

    Everything you need to get started!
  • 1 x BERNINA E 16 PLUS Embroidery Machine package
  • 1 x Bernina E 16 PLUS Operating System Kit, SE V11
  • 1 x Design Shop Lite Software
  • 1 x Cart
  • 1 x AC Power Cord
  • 1 x Crossover Ethernet Cable 25'
  • 1 x Isacord Starter Kit
  • 1 x Wide Angle Cap Option
  • 1 x 9cm Hoop
  • 1 x 12cm Hoop
  • 1 x 15cm Hoop
  • 1 x 30x44cm Jacket Back Hoop
  • 1 x 2-Day On-Site Training Option ($1,500 List Price) with Ed Orantes

    Features No Other Commercial Embroidery Machine Can Touch:

    MULTI-HEAD FLEXIBILITY
    Imagine a scalable embroidery system that allows you/your business to your embroidery production as-needed. The BERNINA E 16 grows with YOU! This modular embroidery system is simply better than a standard multi-head embroidery machine, because you can add single-heads to the system at any time. You also have the freedom to configure your embroidery machines to match your production needs. Even when in multi-head configurations, individual heads can be setup for embroidering on different products. FOR EXAMPLE: you may have three heads running baseball caps and one running a polo shirt.

    LASER ALIGNMENT
    Embroidery postitioning is easy & accurate with Laser Alignment.

    THREAD SYSTEM
    The BERNINA E 16 PLUS delivers the precise amount of thread needed at any given time, resulting in the highest quality stitching at the fastest speeds possible.

    SMALL, CYLINDRICAL LOWER ARM
    Embroidery on socks, shirt pockets, golf club covers and other tight spaces is possible due to the small size of the lower arm on the BERNINA E 16 PLUS.

    *16.2 x 15.2 Maximum Sewing Field with Melco XL Hoop Kit. This is compatible with XT, XTS, EMT16, EMT16PLUS, EMT16X, Bravo (C-Packages) and Bernina E16. Hoop Inner Dimensions are 17.72 x 16.93in (45 x 43cm) - Maximum Sew Field is: 16.2 x 15.2

Extended US Warranty: 5 Year Electrical 1 Year Parts and Labor
Non-US Warranty: 30 days parts and labor.

Specifications

Click here to view more information on the E16 PLUS (.pdf)

Bernina E16 New 16-Needle 16x15* Embroidery Machine 1400SPM, Cart, Narrow Arm, Auto Tension, Chenille, Laser Pointer, Hoops, 48Mo 0% Int, See Extras

Bernina E16B, E16, New, 16 Needle, 16x14" Embroidery, Machine, 1400SPM, Narrowest Cylinder Arm, Auto Tension, Laser Pointer, Lafayette Store

93589: Bernina E16B New 16 Needle Embroidery Machine, Narrowest Cylinder Arm

Our Price: $14,999.00
Prices are subject to change, and only current prices will be honored.

Availability: Retail Store Only
Condition: New In Box

Features

* AllBrands retail stores in TX and LA, Call 800-739-7374

*Financing Available*
*Up to 48 Months Bernina Credit Card Fixed Payment No Interest Financing with approved credit! Click HERE to Apply Online.

The Bernina E16B is the perfect partner for your home studio or business with 16 needles, speed of up to 1,400 spm (stitches per minute), automatic tension settings and a narrow cylindrical arm for sleeves and other tight spaces. Complete tasks like a pro with the BERNINA E 16, whether embroidering a small patch, big shopping bags or jacket backs.

WHAT'S UNDER THE HOOD? Multi Needle Embroidery Features of the BERNINA E 16 include:

– 16 needles
– High-speed embroidery up to 1,400 spm
– True commercial embroidery system
– Extra large embroidery field 400 × 350 mm
– Patented narrow cylindrical lower arm
– Smallest cylindrical lower arm in the industry
– Standard hoops (width × height):
36 × 30 cm (14.17 in x 11.81 in)
44 × 30 cm (17.32 in x 11.81 in)
12 cm round (4.72 in)
15 cm round (1.96 in)

– Go Pro operator’s kit
– Go Pro tension system (fabric based)
– Go Pro design library of 1,000 designs
– Go Pro BERNINA hook system
– Go Pro automatic thread trim
– Adjustable presser foot height
– Appliqué command
– Laser alignment
– Rotation 1, 90, 180
– Move to position
– Move to color
– Move to stitch
– Stock colors
– Bright LEDs
– Network up to six machines
– Industry's largest cap embroidery field capability (36 × 8.2 cm) (14.17 in x 3.22 in)

BERNINA E 16 at a glance

  • Increased Processing Power
    Additional power provides enhanced overall performance.
  • Flexible Multi-Head Production
    Scalable multi-head system that leaves standard multi-head machines in the dust - up to 50% more productive!
  • Up to 75% More Efficient
    Progressive speed changes combine with needle case & pantograph refinements make BERNINA E 16 more efficient than previous models.
  • Up to 30% More Stitches per Bobbin
    Fewer bobbin changes mean reducing downtime per machine, increasing production efficiency exponentially.
  • Outstanding Stitch Quality
    Embroidery has never looked better on popular products like stretchy fabrics, performance wear or dri-fit shirts, hats caps and more.
  • Large Storage Capacity
    The BERNINA E 16 is capable of loading the largest embroidery designs.

    Features No Other Commercial Embroidery Machine Can Touch:

    MULTI-HEAD FLEXIBILITY
    Imagine a scalable embroidery system that allows you/your business to your embroidery production as-needed. The BERNINA E 16 grows with YOU! This modular embroidery system is simply better than a standard multi-head embroidery machine, because you can add single-heads to the system at any time. You also have the freedom to configure your embroidery machines to match your production needs. Even when in multi-head configurations, individual heads can be setup for embroidering on different products. FOR EXAMPLE: you may have three heads running baseball caps and one running a polo shirt.

    LASER ALIGNMENT
    Embroidery postitioning is easy & accurate with Laser Alignment.

    THREAD SYSTEM
    The BERNINA E 16 delivers the precise amount of thread needed at any given time, resulting in the highest quality stitching at the fastest speeds possible.

    SMALL, CYLINDRICAL LOWER ARM
    Embroidery on socks, shirt pockets, golf club covers and other tight spaces is possible due to the small size of the lower arm on the BERNINA E 16.

  • 16 needles for high production output
  • Patented Acti-feed™ thread control with auto-tension
  • Network up to four E16 to create a multi-head system
  • Compatible with home and commercial file formats,
  • 1,000 embroidery designs
  • Small cylindrical lower arm enables embroidery
    on a wide variety of products at high speed
  • Easy cap sewing, large 270 degree sew field
  • Large 15.7” x 16.1” jacket back sewing field i
  • Engineered in the United States

    *16.2 x 15.2 Maximum Sewing Field with Melco XL Hoop Kit. This is compatible with XT, XTS, EMT16, EMT16PLUS, EMT16X, Bravo (C-Packages) and Bernina E16. Hoop Inner Dimensions are 17.72 x 16.93in (45 x 43cm) - Maximum Sew Field is: 16.2 x 15.2

Extended US Warranty: 5 Year Electrical 1 Year Parts and Labor
Non-US Warranty: 30 days parts and labor.

Specifications

Bernina User Interface Manual.

Check out Tutorials for the Bernina E16 Here

BERNINA E 16 - The Perfect Partner for Home, Studio or Business
With 16 needles, speeds of up to 1,400 stitches per minute (spm), automatic tension settings, and a narrow cylindrical arm—the BERNINA E 16 will complete the task like a pro—whether embroidering a jacket back or small pocket.

Our cutting-edge machines are equipped with numerous innovative functions and programs. Here, we provide you with an overview of what your preferred machine is capable of, and tell you all about the advantages of the BERNINA E 16.
Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.
Multi Needle Embroidery

BERNINA E 16
Needles 16
High-speed embroidery up to spm 1,400
True commercial embroidery system
Extra large embroidery field 400 × 350 mm
Patented narrow cylindrical lower arm
Smallest cylindrical lower arm in the industry
Standard hoop 36 × 30 cm (14.17 in x 11.81 in)
Standard hoop 44 × 30 cm (17.32 in x 11.81 in)
Standard hoop 12 cm round (4.72 in)
Standard hoop 15 cm round (1.96 in)
Go Pro operator’s kit
Go Pro tension system (fabric based)
Go Pro design library of 1,000 designs
Go Pro BERNINA hook system RL
Go Pro automatic thread trim
Adjustable presser foot height
Appliqué command
Laser alignment
Rotation 1, 90, 180 degrees
Move to position
Move to color
Move to stitch
Stock colors
Bright LEDs
Network up to six machines
Extra large cap embroidery field (36 × 8.2 cm) (14.17 in x 3.22 in)
Cap hoops and driver opt.
Specialty frames and hoops opt.
Three sizes of pocket frames opt.
Compatible with BERNINA Embroidery Software 7 opt.
Compatible with BERNINA Exclusive Design Collections opt.

Firmware Update V1.04.97
Please read the release notes carefully.
Update Release Notes.
User Manual Rev082115.
PC requirements.
Installation and First Time Start Up Instruction.

The following process below including the graphics is shown in these Release Notes

Automatic Update Process:
1. Make sure that you have Internet Connection to update Online.
2. Attach the BERNINA E 16 dongle.
3. Check to insure that the Emergency Stop on the Control Panel is released.
4. Open the BERNINA UI. When the “?” question mark appears
on the screen, turn on the machine.
5. Proceed to the Advanced Setting Screen.
6. Click on the Update Icon
7. Follow the instructions on screen
8. Machine is ready for stitching.

BERNINA E 16 Review

Eileen Roche Machine Embroidery Blog on Bernina E16B

Introducing the BERNINA E 16 multi-needle embroidery machine.
Meet the new BERNINA E 16, our 16 needle professional quality embroidery machine! Faster, more professional and larger embroidery than ever before! Perfect for home, studio or commercial use. Join us and see the amazing features of the BERNINA E 16.

BERNINA E 16 Multi-needle Embroidery Machine – The Perfect Partner for Home, Studio or Business
With 16 needles, speeds of up to 1,400 stitches per minute (spm), automatic tension settings, and a narrow cylindrical arm—the BERNINA E 16 will complete the task like a pro—whether embroidering a jacket back or small pocket. Personalize team uniforms and caps, monogram stylish totes, commemorate a special occasion, use the Micro Chenille technique for a special 3-D effect, or complete an elaborate embroidered quilt—the results will be everything you ever dreamed of.

More You Tube Videos on Bernina E16B Needle Embroidery Machine

BERNINA International AG warrants this Product for a period of twenty (20) years against defective materials and/or workmanship, five (5) years on ciruit boards, and two (2) years electrical parts.

Bernina E16 OS-V1.08.123 Download

20 YEAR LIMITED WARRANTY ON BERNINA MACHINES
BERNINA International AG warrants this Product for a period of twenty (20) years against defective materials and/or workmanship, five (5) years on ciruit boards, and two (2) years electrical parts.

Bernina E16: 10 steps to solve your thread breaking problems:

Bernina Boys E16 Hook Removal to Check Timing

BERNINA Q Series Tutorial: Bobbin Tension Gauge




Click here for more educational videos

Melco Fast Clamp Pro 34866 for Hard to Hoop Items 4 Sets of Arms for AMAYA XT, XTS, EMT16, EMT16 PLUS, BRAVO, BERNINA E16 Needle Embroidery Machines

Bernina Melco Fast Clamp Pro for Hard to Hoop Embroidery On: dog collars, leashes, bag straps, flip flops, shoes, purses, backpacks, pockets, tote bags, hats

Melco Fast Clamp Pro Hard to Hoop Items, 4 Sets of Arms

Our Price: $899.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Advance Orders Only. Please review the product description for complete details.
Condition: New In Box

Features

Fast Clamp PRO is the answer for hard-to-hoop items. Adjust the arms for height and width, slip the product to be embroidered over the lower arms, clamp down, and go! for Hard to Hoop Embroidery On: dog collars, leashes, bag straps, flip flops, shoes, purses, backpacks, pockets, tote bags, hats.

Replaces Thousands of Dollars Worth of Frames, Clamps & Hoops!

ALL NEW Melco Fast Clamp PRO embroidery clamping system benefits:
Eliminates hooping on many products.

Enables embroidery on products with a narrow or small sew field, such as dog leashes, collars, bag straps, flip flops, small pockets, etc.

Saves time.

Reduces production cost.

Adds versatility to your embroidery machine.

Improves stitch quality.

Simple, all-in-one system (as opposed to other products that require multiple frames/parts to accomplish similar tasks).

Melco Fast Clamp PRO is the answer for hard-to-hoop items. Adjust the arms for height and width, slip the product to be embroidered over the lower arms, clamp down, and go!

Ideal for dog collars, leashes, bag straps, flip flops, shoes, purses, backpacks, pockets, tote bags, soft-side coolers, hats, and more.

Features:
  • Easy to install and use.
  • Adjustable width, easily move arms in or out to fit the product.
  • Adjustable arm height to fit materials of varying thickness.
  • Three sets of clamp arms: Short, Medium, Long.
  • Optimized for AMAYA XT, XTS, EMT16, EMT16 PLUS, & BRAVO embroidery machines.
  • Works with hoop limits in MOS.
  • Light-weight, strong and rigid—manufactured using high quality aircraft aluminum.

    Benefits:
  • monogram on backpack with Melco embroidery machine
  • Eliminates hooping on many products.
  • Enables embroidery on products with a narrow or small sew field, such as dog leashes, collars, bag straps, flip flops, small pockets, etc.
  • Saves time.
  • Reduces production cost.
  • Adds versatility to your embroidery machine.
  • Improves stitch quality.
  • Simple, all-in-one system (as opposed to other products that require multiple frames/parts to accomplish similar tasks).

    Personalized dog collars are easy!
  • Embroidery on dog collar
  • With Melco Fast Clamp PRO, personalizing dog collars, leashes, and other pet accessories is simple.
  • Using the small arm set, simply adjust the width to the desired setting. Then, using the alignment marks on the arms as a guide, position the collar and lock the arms down. You are now ready to sew.
Non-US Warranty: 30 days parts and labor.

Specifications

Get the simplest, most versatile, most useful embroidery accessory ever! This outstanding embroidery clamping system is designed for tight spaces, pockets, pet leashes and collars, shirt sleeves, and much more.

Melco Fast Clamp PRO specs:

Min Sew Field 1.18" x 3.54"
Max Sew Field: 7.16" x 9"
Max Fabric Thickness .23"
Weight (w/arms) 1.74lb–2lb

Melco Fast Clamp PRO Demo Video
Melco's new embroidery machine clamping system is here! Check out the Melco Fast Clamp PRO. This simple clamping system is the solution for items that would be difficult or impossible to embroidery with traditional embroidery hoops.

Embroidery on Dog Collar with Melco Fast Clamp PRO
Easy dog collar embroidery with this new embroidery machine clamping system by Melco.

Melco Fast Clamp PRO Backpack Demo
Using the long arm set, we quickly and easily embroider a monogram onto a backpack pocket, using the EMT16 PLUS embroidery machine with Melco Fast Clamp PRO. This embroidery machine clamping system makes embroidery on challenging areas, such as pockets, easy and hassle-free!

Melco Fast Clamp PRO: Setting Clamp Width
How to set the embroidery clamp width in Melco OS.

Assembly and Installation, Videos, Parts Manual,

Melco 35300 XL 16.1 x 15.2" Hoop Kit compatible with XT, XTS, EMT16, EMT16PLUS, EMT16X, Bravo (C-Packages) and Bernina E16

Bernina Melco Fast Clamp Pro for Hard to Hoop Embroidery On: dog collars, leashes, bag straps, flip flops, shoes, purses, backpacks, pockets, tote bags, hats

Melco 35300 XL Hoop Kit compatible with Bravo (C-Packages) and Bernina E16

Our Price: $389.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Melco XL Hoop Kit. This is compatible with XT, XTS, EMT16, EMT16PLUS, EMT16X, Bravo (C-Packages) and Bernina E16.

Hoop Inner Dimensions are 17.72 x 16.93in (45 x 43cm) - Maximum Sew Field is: 16.1 x 15.2

Update your Hoop Database for your Melco Software to include this XL Hoop.

Enjoy this video showing the Melco XL Hoop on Facebook or YouTube

Note: The Melco XL Hoop Arms included in this kit are not compatible with large Mighty Hoops or the Melco Tubular Sash Kit (original large wooden hoop kit).

Individual Melco XL Hoop PN# 34880 is also available on request without the required Melco XL Hoop Arms.
Non-US Warranty: 30 days parts and labor.

Melco 34643 Complete Hat Hoop Cap Frame Kit: Bravo PkgA-B Embroidery Machines

Melco 34643, Complete, Hat Hoop, Cap Frame, Kit: Bravo, PkgA-B, Embroidery Machines


Our Price: $1,200.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Non-US Warranty: 30 days parts and labor.

Melco Bravo Cart #34262 Table with Heavy Duty Casters, Roller Stand with Storage Underneath for Embroidery Machines

Melco, Amaya, Bravo, Cart #34262, Table with Heavy Duty Casters, Roller Stand, Bernina E16 Cart #34262 Table with Heavy Duty Casters, Roller Stand

Melco Bravo Cart #34262 Table with Heavy Duty Casters, Roller Stand

Our Price: $550.00
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.

Features

Stand Only. Ships Ready to Assemble.
Extended US Warranty: 1 year limited warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Melco 33292 Gauge +33289 33290 33291 Hoops, Micro Pocket Clamps Set for Tubular Items, Use Existing Driver from Cap Equipment, also for Bernina E16

Melco 33292, Gauge, +33289, 33290, 33291, Hoops, Micro Pocket Clamps, Set for Bernina E16

23278: Melco 33292 Gauge +33289 33290 33291 Hoops, Micro Pocket Clamps Set for Tubular Items for Bernina

Our Price: $499.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Non-US Warranty: 30 days parts and labor.

Specifications

BERNINA E 16 Tutorial: Micro Pocket Clamps.

Melco Amaya Bravo 12155 Conventional Cap Frame to Hold Hats and Stabilizer Backing in Place to Embroidery On, Requires Driver to Run on Machine

Melco Amaya Bravo 12155 Conventional Cap Frame to Hold Hats and Stabilizer Backing in Place to Embroidery On

Availability: Usually leaves the warehouse on the same business day.
Condition: New In Box

Features

Melco Amaya Bravo 12155 Conventional Cap Frame to Hold Hats and Stabilizer Backing in Place to Embroidery On
Non-US Warranty: 30 days parts and labor.

Melco Bravo Bernina E16 10217 Round Hoop 12cm 120mm 4.68inches Diameter

Melco Bravo Bernina E16 10217, Round Hoop 12cm 120mm 4.68inches Diameter

23274: Melco Bravo 10217 Round Hoop 12cm 120mm 4.68inches Diameter

Our Price: $59.99
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Melco Bravo 10217 Round Hoop 12cm 120mm
Non-US Warranty: 30 days parts and labor.

Melco EMT-16 Bernina 30312 E-16 Wooden Hoop 43cm x 43cm, 17 x 17 inches, for E16 Embroidery Machine

Bernina 30312, E-16 Wooden Hoop 43cm x 43cm for E16 Embroidery Machine , Melco Bravo 30312 Embroidery Hoop Assembly 43X43cm 16.92 x 16.92" Wood

65971: Melco EMT-16 Bernina 30312 E-16 Wooden Hoop 43x43cm 17x17" for E16 Embroidery Machine
Availability: Retail Store Only
Condition: New In Box

Features

Non-US Warranty: 30 days parts and labor.

HoopTech 599237, 7in1 Quick Change Hoop Set, 7 Different Sizes for Melco Bravo, EMT, XP and Bernina E16, Specify Your Arm Spacing

Hoop Tech,  7 in 1, Quick Change, Hoop Set, Includes, 7 Different Sizes, melco, Embroidery Machines, HoopTech 599237, 7in1 Quick Change Hoop Set, 7 Different Sizes for Melco Bravo, EMT, XP and Bernina E16

8694: HoopTech 599237, 7in1 Quick Change Hoop Set, 7 Different Sizes for Melco Bravo and Bernina E16

Our Price: $369.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Sizes Include:
  • 4.5" x 2"
  • 4.5" x 2.5"
  • 4.5" x 3"
  • 4.5" x 4.5"
  • 6.5" x 4.5"
  • 4" x 11"
  • Back of hat frame - 6.5" x 3.25"

    NOTE: When using hoops on your Brother machine that are non-Brother hoops you may have to do a trial layout. Make sure the needle or foot will not hit the frame when it is sewing.
Non-US Warranty: 30 days parts and labor.

Specifications

Click here for Quick Change Instructions

Hoop tech 599870 Large Back of Cap Hoop for Brother Babylock PR600, Ricoma, Tajima, Melco

Hoop tech 599870 Large Back of Cap Hoop for Brother Babylock  PR600, Ricoma, Tajima, Melco

96033: Hooptech 599870 Large Back of Cap Hoop for Brother Babylock PR600, Ricoma, Tajima, Melco

Our Price: $349.95
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse on the next business day.
Condition: New In Box

Features

Non-US Warranty: 30 days parts and labor.

Hoop Tech 599555 Framing Gauge Only for HoopTech Pocket Clamps on Brother, Bernina E16, MELCO BRAVO/TAJIMA/TOYOTA/BRO1201/SWF/ZSK

Hoop, Tech, 599555, Pocket, Clamp, Framing, Gauge, for, Brother, PR6-10, Needle, Embroidery, Machines


Our Price: $149.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

for use with POCKET (micro) CLAMPS Sold Separately. Driver mounted Clamps for Embroidery on pocket fronts.
Sewing on pockets can be challenging due to lack of space but with smaller sewing arms offered on some embroidery machines, like the melco amaya, sewing on pocket fronts has become possible!

The pocket clamps have a hand tightened knob on the top that open and close the top window. These stainless steel clamps are built to last. They slide right onto your cap driver to help maximize the sewing field.

Note: not all sewing arms are created equal, so not all sewing arms will fit in all pockets and still have room to sew.

We do not currently have a pocket clamp that is compatible with Barudan machines.

The pocket clamp series are individual window clamps that were designed to hold the pocket fronts on finished dress shirts.
Non-US Warranty: 30 days parts and labor.

Hoop Tech 599530 3x3.75" Pocket Clamp for Cap Drivers on MELCO/TAJIMA/TOYOTA/BRO1201/SWF/ZSK

Hoop Tech 599530 3x3.75" Pocket Clamp for MELCO/TAJIMA/TOYOTA/BROTHER PR600'S/BRO1201/SWF/ZSK


Our Price: $149.99
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Required: Must order or have the Pocket Framing Gauge for use with this attachment.

Driver mounted Clamps for Embroidery on pocket fronts.

POCKET CLAMPS

The POCKET CLAMP series are individual window clamps that were designed to hold the pocket fronts on finished dress shirts. Sewing on pocket fronts has always been a challenge due to the limited amount of space that a dress shirt pocket has. But with the smaller sewing arms offered by some embroidery machine manufacturers, like the Melco Amaya, sewing on pocket fronts has become possible with the use of the Hoop Tech POCKET CLAMPS.

The Pocket Clamps are made with a fixed lower window and a moveable top window that is actuated and locked with a hand tightened knob. Made entirely of stainless steel the clamps are built to last. The Clamps attach to and are run on your machines cap driver to help maximize the sewing field.

Available in three different sizes 2.5 x 3.75, 3.0 x 3.75 & 3.5 x 3.75.

POCKET CLAMPS although designed for the fronts of dress shirt pockets, are not limited to just that. Other uses include Socks, gloves, beanies, monogramming shirt cuffs, knit baby hats, collars, slippers and other applications that have limited space for an inside hoop.

Non-US Warranty: 30 days parts and labor.

Specifications

Driver mounted Clamps for Embroidery on pocket fronts.
Sewing on pockets can be challenging due to lack of space but with smaller sewing arms offered on some embroidery machines, like the melco amaya, sewing on pocket fronts has become possible!

The pocket clamps have a hand tightened knob on the top that open and close the top window. These stainless steel clamps are built to last. They slide right onto your cap driver to help maximize the sewing field.

Note: not all sewing arms are created equal, so not all sewing arms will fit in all pockets and still have room to sew.

We do not currently have a pocket clamp that is compatible with Barudan machines

Durkee 7in1 EZ Frames Melco Bravo Bernina E16, Heavy Duty 3/16" Aluminum Tubular Hoops 2x4 2.5x5 3x4 5x4 7x5 8x8"+Cap Back/Radius (like Fast Frames)*

Durkee, Fast Frames,  ez, frames, 7, seven, in, one, 1, Melco Bravo, and Bernina E16, embroidery, dehoop


Our Price: $295.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Introducing Durkee “EZ Frames” for multi-needle Embroidery machines. EZ Frames are a simple, yet effective, system for hooping otherwise difficult to hoop items. Simply apply sticky backing to the underside of the frame with the sticky side up. The adhesive on the backing holds your project in place while the machine is stitching.

Stability - due to their thickness and strength, you can stitch comfortably with EZ Frames at 1,000 stitches per minute!

Strength - EZ Frames are constructed with 3/16" anodized aluminum to provide years of consistent, uninterrupted performance. This compares to Fast Frames 1/16" metal frames which have a lot more vibration up and down movements.* EZ Frames also has larger Thumb Screws for ease of tightening and loosening.

Save - A lower purchase price means up-front savings and higher operating speeds
means more production in less time!


Durkee EZ Frames from Emanuel Neiconi on Vimeo.




Durkee Embroidery - Hooping Tips from Brent Taylor on Vimeo.

Extended US Warranty: Limited Lifetime
Non-US Warranty: 30 days parts and labor.

Specifications

Seven (7) piece combo pack includes the Main Attachment Arm and one (1) each of the following frames:

Durkee 5.5x6" Cap Frame Front, Hat Back Hoop, Insert for Melco, Bravo, Bernina E16 Embroidery Machines

Durkee, 5.5x6", Cap, Frame, Front, Hat, Back, Hoop,

89950: Durkee 5.5x6" Cap Frame Front, Hat Back Hoop for Melco, Bravo

Our Price: $195.00
Prices are subject to change, and only current prices will be honored.

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Usually leaves the warehouse on the next business day.
Condition: New In Box

Features

Durkee Innovation in Embroidery Technology, Introducing Durkee Cap Frames - all metal frames allowing embroiderers to embellish caps with logos and designs more than Brother 2 1/2" tall.
Durkee’s cap frame attaches to your machine just like a normal hoop. The bill of the cap is clamped securely in place while the embroiderer presses down the front portion of the cap held in place with sticky backing/stabilizer.

This is a fantastic frame for cap embroidery without the need to change over to a cap driver. The Durkee cap frame fits into your standard arms just like a normal frame. It is so easy to use. Now everyone can do cap embroidery in house.



  • Easy to use - attaches to your machine like a normal hoop
  • Extra-large sewing field - much larger than many cap just like any other hoop embroidery systems and at a fraction of the price
  • Durable but lightweight - all metal construction
  • Can hoop the back of a cap, as well as, the front with anodized aluminum plate and stainless steel arms
  • Vertical slots in the front and back of the frame
  • Comes with Durkee’s lifetime replacement warranty plus, alignment guides to aid in achieving consistent hooping results.

    Our cap frame allows the embroiderer to sew a design or logo approximately 5" wide and 4 1/2" tall. After completing the front of the cap, the embroiderer can turn the cap around and clamp the back tabs of the cap in place to embroider the back of the cap as well.
Extended US Warranty: Lifetime warranty on defects in materials and workmanship.
Non-US Warranty: 30 days parts and labor.

Specifications

Fast Frame 7 in 1 , X-Change For Toyota, Brother Tajima Melco Commercial Embroidery Machines (1 Bracket & 6 Hoops)

Fast Frame 7 in 1 , X-Change For Toyota, Brother Tajima Melco Commercial  Embroidery Machines (1 Bracket & 6 Hoops)

Shipping: Free Ground Shipping to the Contiguous USA
Availability: Please contact us for availability.
Condition: New In Box

Features

Fast Frame, X-Change For Toy/ Bro /Taj (1 Bracket & 6 Hoops)
Non-US Warranty: 30 days parts and labor.

Bernina E16 10216 Round Hoop 15cm (5.85 Inches) Short Arm, Included with E16 Machine

Bernina E16 10216 Round Hoop 15cm (5.85 Inches) Short Arm, Melco 10216 HOOP, 15cm (5.85 Inches) Short Arm - Special Order Part

56101: Bernina E16 10216 Round Hoop 15cm (5.85 Inches) Short Arm

Our Price: $49.95
Prices are subject to change, and only current prices will be honored.

Availability: OUT OF STOCK
Condition: New In Box

Features

Melco 10216 HOOP, 15cm (5.85 Inches) Short Arm - Special Order Part
Non-US Warranty: 30 days parts and labor.

Bernina 34259 Cap Frame Driver Red, 2 Hat Hoop Frames +34031 Wide Angle Cap Gauge for Melco Bravo, XTS, E16

Bernina 34259 Cap Frame Driver Red, 2 Hat Hoop Frames +34031 Wide Angle Cap Gauge for Melco Bravo, E16

66053: Melco 34259 XTS Cap Frame Driver (Red) & Hat Frames Equipment for Bravo and Bernina E16
Shipping: Free Ground Shipping to the Contiguous USA
Availability: Retail Store Only
Condition: New In Box

Features

Non-US Warranty: 30 days parts and labor.

Specifications

BERNINA E 16 Tutorial: Loading Hoop on Cap Driver, Playlist
Now you’re ready to stitch the cap! In this video tutorial we will show you step by step how to attach the cap to the driver, to trace the design and to start embroidering.
More how-to videos on the BERNINA E 16 can be found in the playlist.

Installing & Removing the Red Wide Angle Driver

Bernina E16 Micro Pocket Hoops Clamps Frames Set of 4 #33289 33290 33291 including 33292 Gauge to be used with Bernina Hat Cap Equipment Driver Only

Melco Micro Pocket Clamp (LARGE:  3.5" X 3.75"), Bernina E16  Micro Hoops Clamp Set of 4: (# 33289, 33290, 33291, 33292)

85171: Melco 33291 Micro Pocket Clamp (LARGE: 3.5" X 3.75")
Shipping: Free Ground Shipping to the Contiguous USA
Availability: Retail Store Only
Condition: New In Box

Features

When embroidering on jeans, a pocket is a great place to add a small design to tie a theme together!

Add a design to the pocket of a shirt; make a subtle statement.

Pockets are little spotlights for embroidery designs.

Embroidering on pockets can be difficult or impossible. How is it hooped?
Does the entire pocket need to come off, and if so, how does it go back on?

How much plotting and scheming does one need to do in order to stitch onto a pocket?!?!

Having the right hoop such as the Melco Micro Pocket Clamp can make adding your favorite embroidery designs to pockets, pant legs and bags easier and you want have to remove a pocket!!!

Great for adding embroidery designs to shirt sleeves, pant legs, pockets and bags.
Outer frame dimension: 4.5" x 4.5"
Sew field: 2.6" x 2.75"
Non-US Warranty: 30 days parts and labor.

Specifications



Driver mounted Clamps for Embroidery on pocket fronts.
Sewing on pockets can be challenging due to lack of space but with smaller sewing arms offered on some embroidery machines, like the melco amaya, sewing on pocket fronts has become possible!

The pocket clamps have a hand tightened knob on the top that open and close the top window. These stainless steel clamps are built to last. They slide right onto your cap driver to help maximize the sewing field.

Note: not all sewing arms are created equal, so not all sewing arms will fit in all pockets and still have room to sew.

We do not currently have a pocket clamp that is compatible with Barudan machines.

Melco Bravo Bernina E16 010204-01 Hoop Tubular Plastic 44cm X 30cm (17.25in X 11.75")

Bernina E16 Melco, Bravo, 010204-01, Hoop, Tubular, Plastic, 44cm, 30cm, 17.25, inch, 11.75

64431: Melco Bravo Bernina E16 010204-01 Hoop Tubular Plastic 44cm X 30cm (17.25in X 11.75")

Our Price: $69.99
Prices are subject to change, and only current prices will be honored.

Availability: Usually leaves the warehouse in 2-3 business days.
Condition: New In Box

Features

Bernina E16 Melco Bravo 010204-01 Hoop Tubular Plastic 44cm X 30cm(17.25in X 11.75")
Non-US Warranty: 30 days parts and labor.
Copyright © 1995-2020 AllBrands.com.
SewingMachineStore and SewingMachineStore.com are property and trademarks of AllBrands, LLC, dba AllBrands.com. All Rights Reserved.
