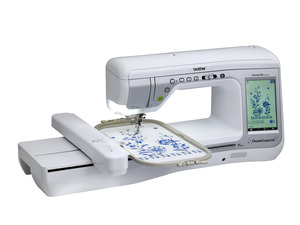

Brother VM5100 Dream Creator2 XE Sewing Embroidery Machine

• 561 sewing stitches (531 built-in, 30 on CD), 318 built-in embroidery designs, 14 embroidery fonts, 3 Japanese embroidery fonts, 14 styles of one-step auto-size buttonholes and 140 frame pattern combinations

• V-Sonic™ Pen for sewing and embroidery
         Includes 318 Built-In Embroidery Designs, 30 on CD, 18 Bobbin Works Designs. 140 Border and Frame Combinations.

• Optional Droplight™ Embroidery Positioning Marker

• V-series: Our largest workspace ever - 5'' x 11.25''

• Large embroidery area 7" x 12" and two sizes of embroidery frames: 5" x 7" and 7" x 12"

• 10-inch LED lighting

• Pivot function

• Built-in dual USB ports

• Exclusive bag set included

  Product Brochure for All Brother V Series Machines 2014(.PDF)




  Basic Features

  LCD Size (Horizontal x Vertical) inches: 3.6 x 6.0
  Display (Number of Colors): Up to 260,000
  Stitch Select: Touch Panel
  Screensaver: No
  Opening Screen: Yes
  On-Screen Help: Yes
  Built-in Languages: Yes
  On-Screen Editing: Yes
  Lighting: LED 10" Lighting
  Needle Threading System: Automatic
  Thread Tension: Automatic
  Easy Bobbin Winding: Yes
  Adjustable Bobbin Winding Speed: Yes
  Thread Senso: Upper and Bobbin
  Thread Sensor On/Off: No
  Automatic Thread Cutter: Yes
  Quick-Set™ Bobbin: Yes
  Full USB: 1
  Computer Connectivity with Update Capability: Yes
  Mouse Capability by USB: Yes
  Media Type: USB




  Sewing Features

  Bed Area (Depth x Width) inches: 7.7 x 15.6
  Work Space (Height & Width) inches: 5.0 x 11.25
  Maximum Sewing Speed (Stitches Per Minute): 1,050
  Knee Lifter: Yes
  Feed Dog: 7
  Back to Beginning Key: Yes
  Standard Presser Feet Included with Machine: 12
  Built-in Sewing Stitches (Includes Buttonhole Styles): 561 (531 Built-in and 30 on CD)
  Buttonhole Styles: 14 One-step
  Built-in Sewing Lettering Fonts: 5 (Including 1 Japanese and 1 Cyrillic)
  Stitch Width: 7mm
  Stitch Length: 5mm
  My Custom Stitch™ Feature: Yes
  Sideways Sewing: Yes
  Start/Stop Button: Yes
  Speed Controller: Yes
  Twin Needle Setting Key: Yes
  Needle Position Key (Up/Down): Yes
  Automatic Height Adjuster™ AHA® Feature: Yes
  Presser Foot Pressure Adjustment: Yes
  Presser Foot Leveling: Yes
  Automatic Presser Foot Lifter: Yes
  Pivot Function: Yes
  Drop Feed/Free Motion: Yes
  Free Motion Quilting Foot: Yes
  Built-in Quilting Stitches: Yes
  Included Quilting Feet: Yes

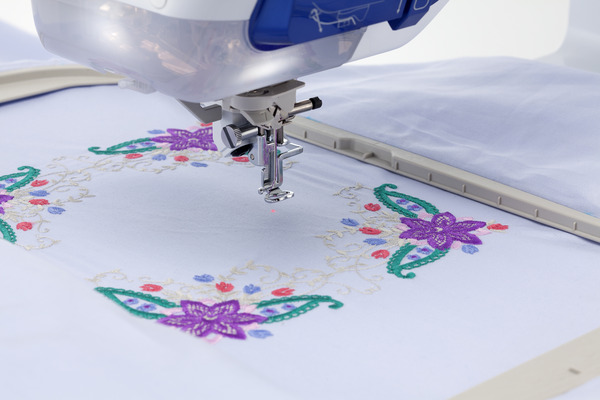

  Embroidery Features

  Maximum Embroidery Area (X x Y): 7" x 12"
  Maximum Embroidery Speed (Stitches Per Minute): 1,050
  Built-in Embroidery Designs (Non-License): 318
  Built-in Embroidery Designs featuring Disney/Pixar® Characters: No
  Built-in Laura Ashley® Embroidery Designs: No
  Built-in Frame Designs: 10 Shapes x 14 Stitch Patterns
  Thread Wiper: Yes
  Resume Function: Yes
  Trial Position/Layout Function: Yes
  Built-in Border Function & Designs: Yes
  Automatic Color Sorting on Border Function: Yes
  Sewing Decorative Stitches with Embroidery Arm Attached: Yes
  Appliqué Creator Function: No
  Automatic Feed Thread Cutting: Yes
  Curving Text on Screen Editing: Yes
  Space Reduction among Embroidery Alphabets: Yes
  Pattern Rotating: 1, 10, or 90 Degrees
  Drag and Drop Editing: Yes
  Onscreen Automatic Density Adjustment (STB): Yes
  My Custom Design™ Feature: No
  iBroidery®.com: Ready: Yes

• Carrying Case

• Soft Cover

• Exclusive travel bag set

• Foot Controller

• Extra Presser Feet: Blind stitch, buttonhole, button fitting, zig zag, monogramming, overcasting, zipper, straight stitch, quilting, free-motion

  Embroidery File Formats: .PES and .DST embroidery data files are compatible with this machine.

• Soft Cover

• Exclusive travel bag set

• Blind stitch foot

• Buttonhole foot

• Button fitting foot

• Zig zag foot

• Monogramming foot

• Overcasting foot

• Zipper foot

• Straight stitch foot

• Quilting foot

• Free-motion foot

  Options:

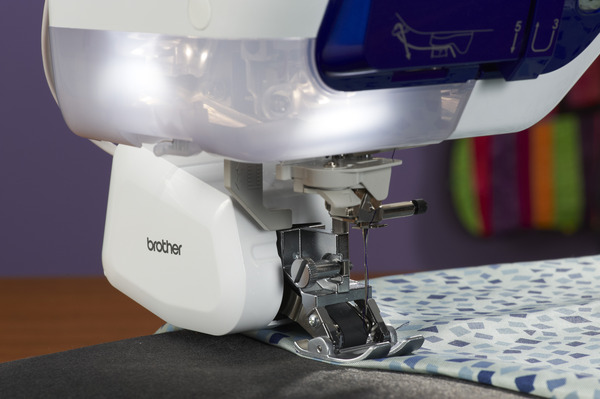

  Optional Muvit Dual Feed Foot
  Optional Droplight™ Embroidery Positioning Marker

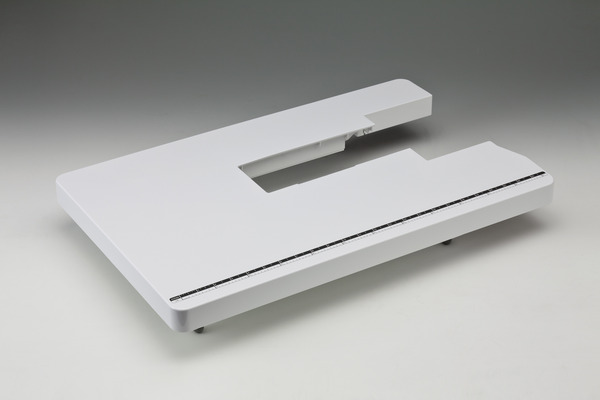

  Optional Extension Table

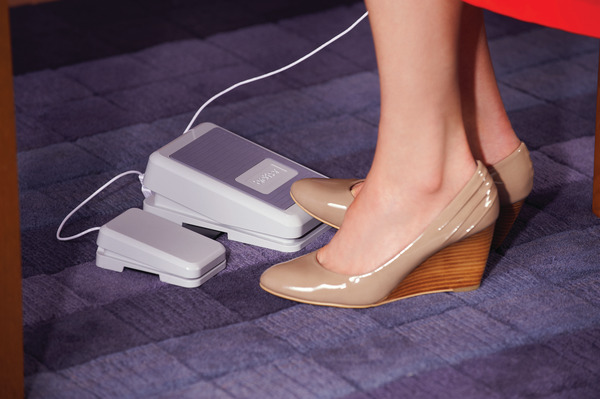

  Optional Multi Function Foot Controller

Optional Muvit dual feed attachment

7x12" embroidery upgradeable to optional 8x12 and 8x8" embroider hoops included with upgrade.

Optional dual function foot control

Optional large extension table
