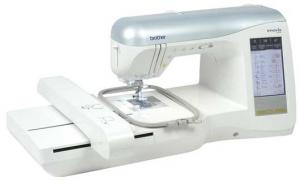

1 Left, The Innov-ís 2800D offers a color LCD touch screen, a 6 inch x 10 inch embroidery area and precise stitching for all your sewing, quilting, and embroidery projects. The exclusive built-in dual USB ports allow you to connect your machine directly to your computer or access a variety of additional memory devices (not included). Powerful on-screen editing features include layout, pattern rotation in 1 degree increments, mirror imaging and scaling. Oversized, high-resolution color LCD screen. Select stitches, embroidery patterns, tutorials and more by simply touching the screen.

Sewing Stitches
Alphabet Fonts: 3
My Custom StitchTM: Yes
Buttonholes: Yes
Reinforcement/reverse Stitches: Yes
Utility stitch functions: Yes
Decorative stitch functions: Yes
Quilting stitch functions: Yes

Needle/Thread Feature
Bobbin: Horizontal
Needle Threading System: Advanced
Thread Sensors: Yes
Upper Thread Tension: Automatic
Needle Position: Variable
Thread Cutters: Yes
# of needles: Single or twin
Bobbin winding system: Automatic

Machine Features
Machine Speed: Maximum embroidery speed 800 spm / Maximum sewing speed 1000 spm
Free Arm: yes
Presser foot attachment: snap-on
Drop Feed Dogs: 7-point
Presser Foot Pressure Adj.: Yes
Knee Lifter: Yes
Presser Foot Lift: Yes
Presser Foot Height: 3 levels (sewing/embroidery)
Sewing Workspace: 8" x 5"
Lighting: 5 LED
Max. Emb. Area: 6" x 10"

Embroidery Pattern
Disney Designs: 158
Monogramming Fonts: 10
Frame Patterns: 120** 10 Shapes x 12 Stitches
Decorative Patterns: 70
Media Recognition: USB and Host, Memory Card
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Brother Innovis NV2500D Users Operating Manual Instruction Book

On-screen Instruction: Yes
Screen size/specs: 9" x 13", color, LCD, touch
On-Screen editing: Yes
Compatible with PE-Design/PED Basic: Yes
Design Memory: Yes (sewing/embroidery)
Software Upgrades: Yes

Carton Contents
Accessory Storage: Built-in/slides off for free arm sewing
Carrying Case: Included
Included Accessory Feet: Utility, walking, side cutter, free-motion quilting, straight stitch
Wide Table: Optional - SATFM4000D
In the box: USB cable, foot controller, instruction book, accessories
Included Embroidery Hoops: 6" x 10", 5" x 7", 4" x 4"

UPC Code: 012502614302
Machine Dimensions: 20 1/8"(W) x 12"(H) x 10 1/8"(D)
Machine Weight: 24.7 lbs, 32.4 lbs w/emb unit
UL/CSA Listed: y/110

Microsoft® Windows® 7 support for Brother Home Sewing Machine Products (.pdf)

Brother NV2800D embroidery / sewing machine(1/2). Brother embroidery/sewing machine NV2800D. This demo is in sewing/character mode. Over 540 HD Video

Brother embroidery/sewing machine(2/2). Brother embroidery/sewing machine NV2800D. This demo is in sewing/character mode. Over 540 HD Video
Other Images

icon Stitch count 11,113,343

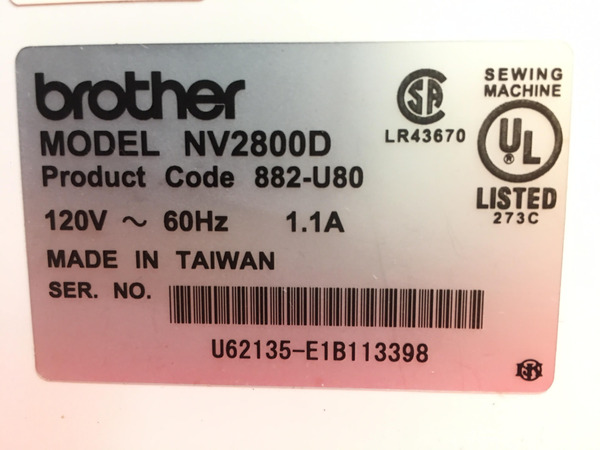

icon Serial Number U62135-E1B113398.
