Also Includes


INCLUDED: Organ 214X1 100 Chrome Sewing Machine Needles Sizes 18-30 for*

With a generous 750mm of free space under the arm and powerful unison-feed that provides a maximum stitch length of 10mm, the machine delivers outstanding productivity when sewing heavy materials such as tents and sheets.

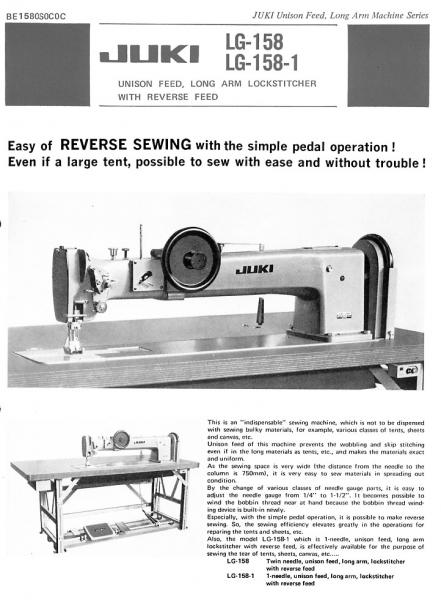

This JUKI LG-158 is a 30" Long Arm Sewing Machine with Compound Feed (Walking Foot), Jumbo Bobbins and a 1/2" Needle Gauge.

The machine is complete with unassembled table top, heavy duty stand and new 110 Volt SERVO Motor.

Most widely used for sewing larger panels of materials such as vinyl signs, awnings, tarps, insulation covers, and other large items.

This is a MADE IN JAPAN machine.
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Long-arm, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

MAX FOOT LIFT: 22mm (Almost a Full Inch)

Max. sewing speed 1,500sti/min
Max. stitch length 10mm
Presser foot By pedal: 21.5mm
Alternating vertical movement 6~19mm
Distance from needle to machine arm 750mm
Needle DD×1 (#25)
Thread #20~#5, B69~B138, Nm=40/3~20/3
Other Images

icon Juki LG-158-2

icon Juki LG-158-2

icon Juki LG-158-2

icon wider table than shown with servo motor, not clutch motor.

What is the maximum thread size that you can use on Juki LG -158 industrial sewing machine?
Hi, our Juki tech says #277 thread max size on Juki LG158, unless you are willing to adjust needle clearances in the bobbin area to accommodate the extra thread thickness of sizes over #277. Calvin from Juki in Miami said tex 310 should also work for the Juki 158. Joe
