Juki HZL DX-4500QVP Hayate Sewing and Quilting Machine 368 Stitches, 7" Touchscreen, 12" Sewing Arm Space, Smart Feed Dual Feed, Drop Feed System Kit

Now you too can experience speed, precision, and control with JUKI’s Hayate DX-4500QVP. "Hayate" (はやて), meaning "swift wind" in Japanese, is designed for you. Delivering smooth, responsive performance for sewists like you who want true value without sacrificing stitch quality.

The Hayate DX-4500QVP offers state-of-the-art features including a 7" touchscreen, a large 12" sewing space, a bobbin thread sensor system, adjustable lighting, and a multitude of other functions designed to make your sewing effortless.

The Hayate is perfect for sewists, quilters and crafters who are seeking a wide sewing area, and an expanded surface with the included extension table. You'll also love features like automatic lock or locking stich, thread trimmer, sensor buttonhole system, and a programmable second switch on our foot control, which will make crafting your projects a breeze. With 368 stitch patterns, including, 20 professional buttonholes, tapering stiches and 4 fonts, the Hayate DX-4500QVP is the perfect tool for all your creative needs!

With its focus on speed, smoothness of operation, and precision, the Hayate DX-4500QVP embodies the power and reliability that define JUKI: bringing you a seamless sewing experience from start to finish.

7" Color Touch Panel:
Just like on a smartphone or tablet, intuitively select and edit patterns, change various settings, and access instructional videos. With only the most important and frequent used operations available, the layout and user-friendliness of icons are revolutionary.

Built-In Instructional Videos:
View instructional videos on your smartphone by scanning the QR code of the specific instruction you need. From the screen, you may also select the title of the operating procedure that you want to view. An animation will show on screen with instructions.

Visualization of Settings & Adjustments:Maximum Sewing Speed
Changes in settings and adjustments can be visualized through animation. Adjust the thread tension by sliding your finger over the scale in front of the touch panel. The animation changes according to the adjustment value. Settings that differ from default is highlighted in blue.

Store and Recall Stitches:
The last 10 stitches are stored in the stitch history. View illustrations of stitch patterns in the history folder to identify and select them with a single touch.

Presser Foot Pressure AdjustmentMaximum Sewing Speed
In addition to the popular stitch width and length adjustment dials, you may adjust the presser foot pressure with an additional dial below the touch panel. Being able to change the presser foot pressure while sewing allows you to immediately respond to uneven stitching and feeding.

Drop Feed
The feed dog can be raised and lowered with the press of a button. Perform free-motion quilting and free-hand embroidery with ease. A transparent quilt presser foot makes the needle visible and can be used for ruler work.

Bobbin Thread Sensor:Maximum Sewing Speed
An optical sensor notifies you when the bobbin thread reaches a certain amount. Sew with confidence without worrying about the remaining amount of thread.

Change Light Temperature:
Adjust the color temperature of the light bulb between daylight (white) and soft white (yellow toned). This feature helps eliminate visibility difficulties with certain fabric and thread color combinations.

Scan QR Code for Instructional Videos:Maximum Sewing Speed
You can view an instructional video on your smartphone by scanning the QR code of the operating procedure you would like to view.

JUKI SmartFeed (Built-In Dual Feed):
Engage the JUKI Smart Feed dual feed function to move the top layer of your fabric in sync with the lower layer. Adjust the feed amount by 0.2mm for beautiful stitching without worry of shifting layered fabrics.

Increased range for the angle and direction settings have expanded the possibilities for sewing tapering. Select the angle and direction. You may also set a stitch length in advance or store the length of the stitches that were sewn. By using the memory and inversion functions, star-shaped appliques are finished beautifully.

Interchangeable Straight Stitch Feed System:
Effortlessly switch to perfect straight stitch sewing with revolutionary Interchangeable Feed System. Create perfect stitches from beginning to end. No pulling, bunching, or pushing fabrics into the needle opening. Smooth handling for perfect piecing, close edges, curves, layers, and more. Perfection!

Various Presser Foot Lifting Functions:Knee Lifter Lever
Now equipped with the same mechanism as JUKI industrial sewing machines for preventing uneven sewing on quilts and velvet, as well as stretched stitches on knit fabrics. The presser dial allows you to raise the presser foot slightly to prevent uneven feeding and achieve a beautiful finish. Other functions include feed dogs can lower automatically when the presser foot is raised to add an extra lift with the knee lifting lever. This prevents the fabric from getting caught on the feed dog and allows the fabric to be taken in and out smoothly. Third function is the pivot function which allows you to easily change the sewing direction while leaving both hands on the fabric, for example, when sewing corners of appliques.

Beautiful Buttonholes:
Create beautiful buttonholes with the clamping plate and sensor. This provides a reliable feeding even on thick fabrics and seams, and automatically corrects the left and right seam densities.

Combine Stitches:
Combines stitch, fonts, and more to create unique combinations.

Accessories Storage:
The auxiliary bed with accessory storage is the first among sewing machines with a 12" workspace. Keep your most often used accessories at your fingertips.

Control system: Computer
Sewing Speed: 1,050spm
Needle Type: 130R / 705H
# of Stitches: 368
# of fonts: 4 alphabetic and numeric fonts
Max. Zig Zag Width: 0.3" (7mm)
Max. Stitch Length: 0.2" (5mm)
Light: LED (6 Options)
Thread Tension System: Automatic (digital)
# of Buttonholes: 20
Presser Foot Lift: Electronic
Adjustable Foot Pressure: Yes, Digital
Bobbin Type: 15 Class
Machine Weight: 33lbs (15Kg)
Dimensions: 23.7"(W) x 12"(H) x 10.4"(D) (0.9mm x 0.5mm x 0.4mm)
Shank Type: Low with Provided Adapter Shank

Control System Computer
Number of Stitch Patterns 368
Number of Available Fonts 4
Buttonhole Automatic (sensor system) with clamping plate
Start/Stop Button Green: Ready to start or sewing. Red: Not ready. Orange: Lock stitch engaged during pattern sewing.
Maximum Stitch Speed 1,050 stitches/min
Auto Thread Trimming Yes
Automatic Needle Threader Yes
Thread Tension System Automatic
Automatic Lock Stitch Lock stitch + thread trimming
Feed Mechanism Box Feed System
JUKI Smart Feed Yes (Dual feed function)
Presser Foot Pressure Stepless digital adjustment
Drop Feed Yes
Easy Bobbin Winding Yes
Bobbin Winder Independent motor system
Quick Bobbin Preparation Yes
Bobbin Thread Counter No
Bobbin Run-Out Sensor Yes
Lighting 6 LED lights
Straight Stitch Mode Straight throat plate + feed dogs + presser foot
Micro Lifter Dial-controlled pressure adjustment
Free Arm Yes
Stitch Adjustment Dial + LCD (Width 7mm max, Length 5mm max)
Needle Position 37 positions (by pattern)
Pattern Reverse Up/down, left/right
Twin Needle Sewing Yes (optional)
Elongation Pattern Yes
Start/Reverse Speed Control Yes
Needle Up/Down Button Yes
Low-Speed Sewing Yes
Needle Stop Position Selectable
Presser Foot Pivot Yes
Pattern Memory 10 patterns
Presser Foot Holder Button Yes
Presser Foot Lift Height 6, 8, 10, 12mm (system dependent)
Lock Mode Yes
Operation Guide Animated + illustrated + text display
Cover Soft cover with storage
Auxiliary Bed Yes
Knee Lifter Yes
Wide Table Yes
Foot Controller Yes (with separate switch)
Accessory Box Yes
Dimensions 23.7″ W x 12.0″ H x 10.4″ D
Arm Size 12.0″ W x 4.7″ H
Weight 32.8 lbs
Accessories Full accessory kit included (presser feet, quilting tools, bobbins, guides, spool caps, needles, cover, table, and more)

Hayate DX-4500QVP Included Accessories

Standard Presser Foot
Smooth Presser Foot
Presser Foot with Guide
Appliqué Presser Foot
Pearl Attaching Presser Foot
Straight Presser Foot
Zipper Presser Foot
Overcasting Presser Foot
Blind Stitch Presser Foot
Buttonhole Presser Foot
Manual Buttonhole Presser Foot
Open Toe Presser Foot
Patchwork Presser Foot
1/4" Guide Foot
Quilt Presser Foot
Quilt Guide
Edge Sewing Presser Foot
Straight Stitch Throat Plate
Straight Feed Dog
Accessory Box
Bobbins (4)
Needle Set
Auxiliary Spool Pin
T-Shape Screwdriver
Ripper
Cleaning Brush
Spool Caps (Small, Medium, Large)
Foot Controller
Knee-Lifting Lever
Power Cord
Wide Table
Sewing Machine Cover
Quick Reference Guide

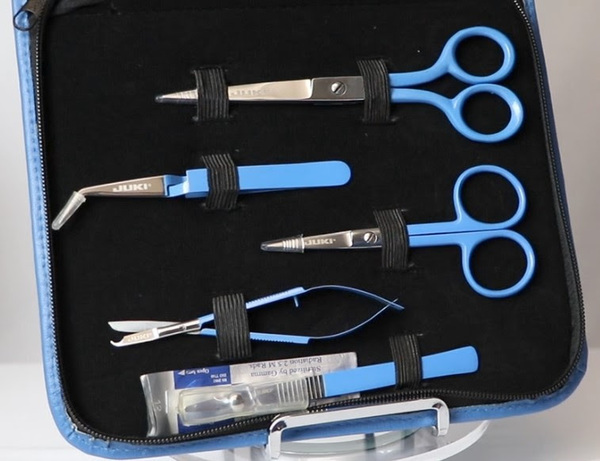

FREE Juki SS-5 5 Piece Scissor Kit Set Hook and Snip, spring handled, Straight, and Large Ring Fine Point Trimmers, Tweezers, Surgical Style Seam Ripper
