"I installed the 6000sm today. It does exactly what i need it to do. I did set the speed to maximum at 1700. Plenty fast enough for me. The slow speed control is phenomenal! Installation was super simple.
I was able to use the same belt. I love it when a plan comes together!" Gregg G. Baton Rouge 2/21/20.

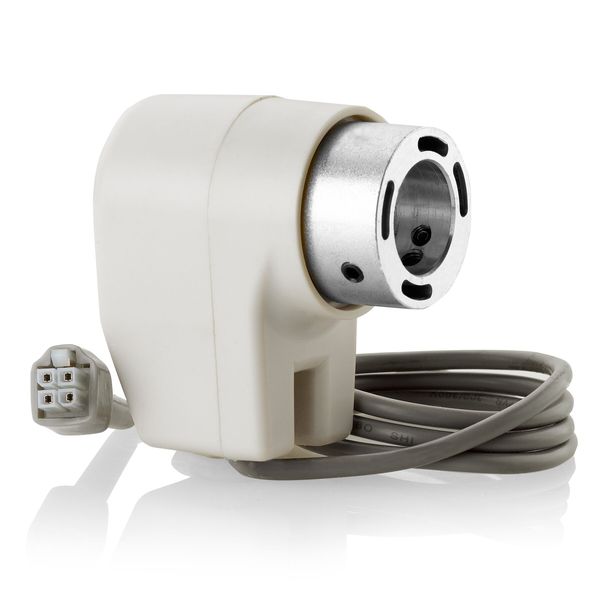

The SYNC synchronizer kit comes with two shoulder screws that are 7MM and 8MM diameter. The screws fit in the end of the upper shaft and hold the hub in place. Remove the existing screw and measure it to be sure of the size, before ordering motor with SYNC or SYNC by itself. SYNC does not fit on some older Consew and Singer that it cannot be installed on.
Needle stop down is good for turning corners, Needle stop up is better for inserting and removing materials under the foot and needle.
*Pair your 6000SM servo motor with SYCH needle stop position synchronizer for precise control of your sewing operation. SYCH will not fit the some models of older Consew (see below) and Singer (31-20)

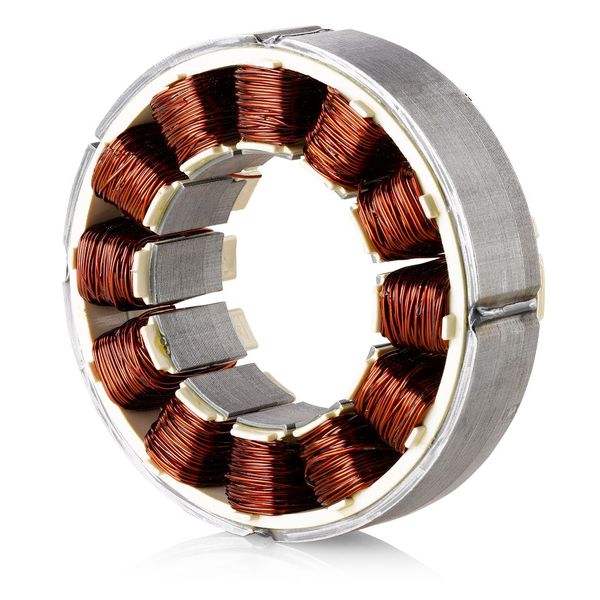

Motor is Brushless, Clutchless, with 60mm Pulley, 12 Coil Motor, and Light Plug In Receptacle The 12 coils feature offers more torque and is just as easy or easier to control versus the 9 coils motors.
Beauty and Brawn

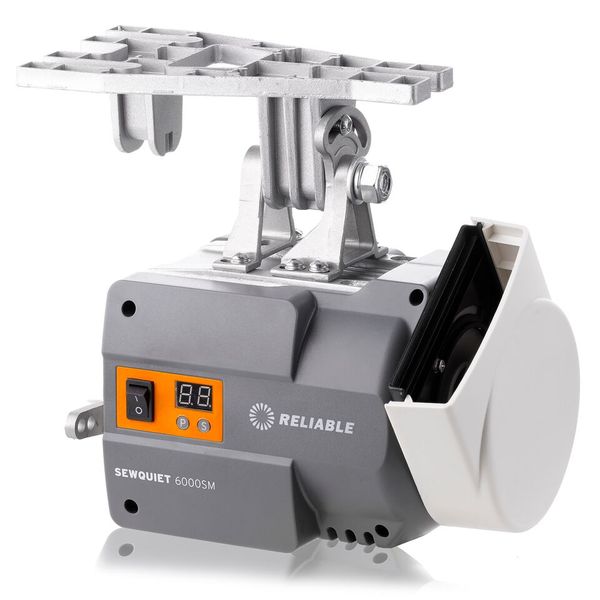

The SewQuiet 6000SM brushless DC servomotor is a modern-day marvel of ingenuity and technology, crafted and designed to exceed your expectations. This is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that’s needed to work with the toughest materials. And for those looking to add a synchronizer to your motor, it’s now available as a low cost stand-alone option.

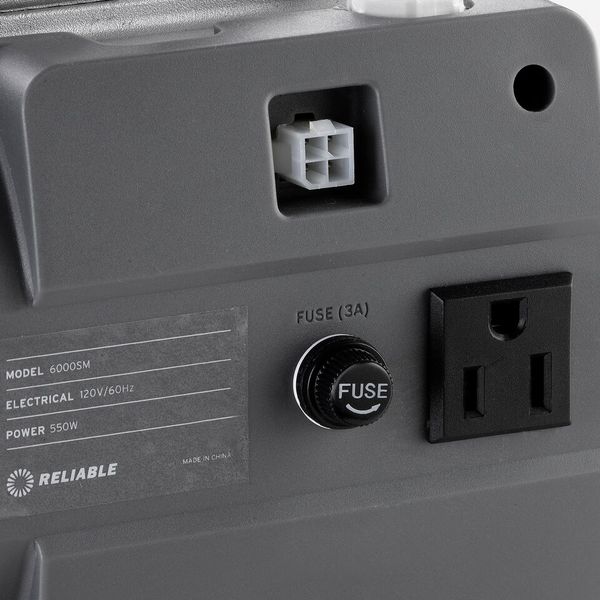

The SewQuiet 6000SM represents the fourth generation of Reliable’s energy saving servomotor innovation. Precision step-by step stitching for detailed sewing, the ability to plug in a grounded light directly to the rear of the motor, UL/CSA certified electrical components and the total silence that gives the SewQuiet its name… the new 6000SM takes everything we’ve learned about motors over the past 60 years to new heights.
• 550W power
• More torque than conventional clutch or servomotors
• Up to 75% energy savings
• Digital speed control
• Clockwise and counterclockwise directions
• Built-in overload protection
• Instruction manual with speed settings included

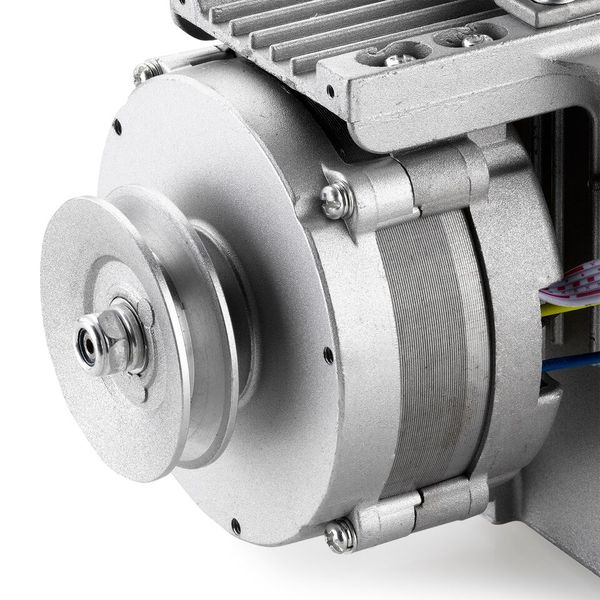

Includes one 60mm installed pulley
This is a breakthrough in servomotor technology, the first 12-coil design, the torque is so strong you can't hold the pulley with your hand (more torque even then a clutch motor).
Reliable Newest Model 6000SM Motors are now shipping, 550 Watts, 3/4HP Motor Brushless, No Clutch, Dial RPM Speed Control, Reverse, 2 Overload Fuses, Auxillary Power Outlet
"Step Stitch will give you the stitch by stitch speed control you need. The servo motor variable speed is affected by the torque of the machine mechanics and materials being sewn more than just the torque of the motor. Some machines will have better variable speed control than others depending on the torque of the machine (how easy it is to turn the hand wheel over materials being used). The speed control dial is digital, and cannot be preset to exact stitches per minute, only RPM because of the differences in machines and materials." John Douthat, Owner and Tech
You can set the speed on these motors from 100 rpm up to 3800 rpm in 100 rpm increments.
*Exclusive Electronic Controlled "Step Stitch" Function allows for one stitch at a time sewing by leather workers or anyone who needs stitch by stitch control for small items and turning corners.
More torque at 600W than conventional clutch or servomotors at 400-550W, replacement, for existing clutch motors with no speed control, or undependable dc motors, Up to 75% energy savings!

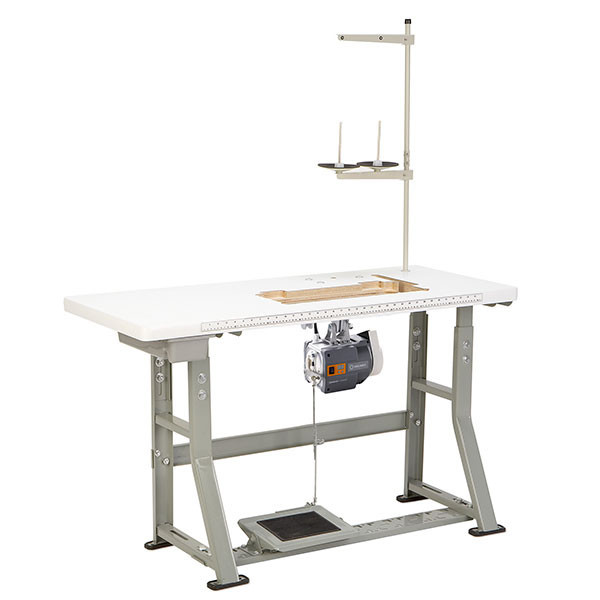

NO CLUTCH, NO BRUSHES, NO PROBLEM: The SewQuiet 6000SM brushless DC servomotor is designed to operate all light to heavy-duty industrial sewing machines.

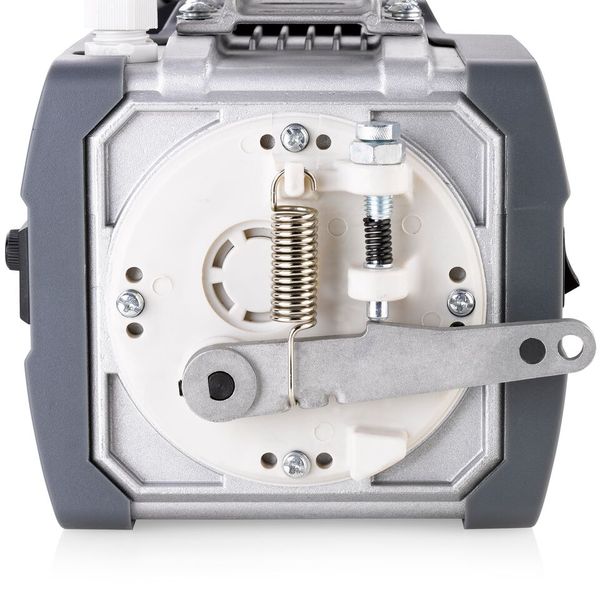

The brushless DC servomotor design which has very good torque even at low speeds; uses a laser sensor instead of a traditional mechanical clutch. This design gives the operator a graded acceleration compared to the abrupt type of acceleration common with a clutch motor.
QUIET AND CONTROLLED: With the SewQuiet 6000SM, the noise that is normally associated with sewing motors (clutch and servo) is almost entirely eliminated, creating a more pleasant work environment.

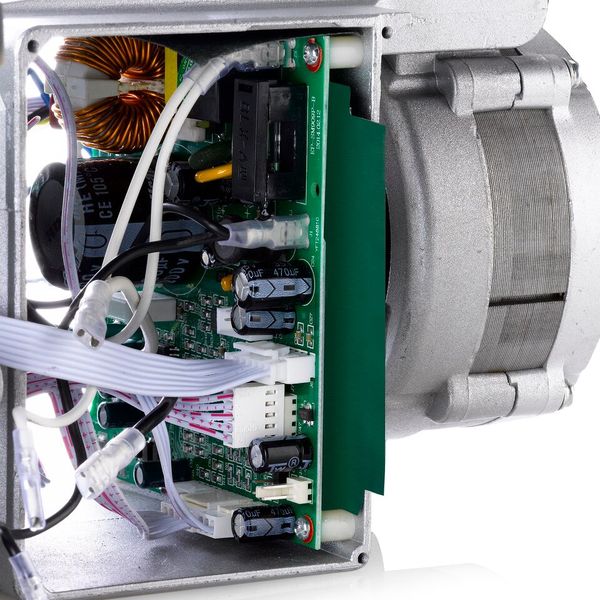

Whether you are an advanced sewer or a beginner, the SewQuiet 6000SM's microprocessor controller gives the user an unparalleled connection to the sewing machine, allowing for speed or detailed work. A "stepping" speed can be achieved which allows for literally, a step by step control of the sewing speed. This makes sewing detailed work much easier.
From the utmost in speed control technology and the ability to reduce costs with improved energy usage, to the 'oh, sew quiet' work environment, choosing the Reliable SewQuiet 6000SM is simply the smarter choice.

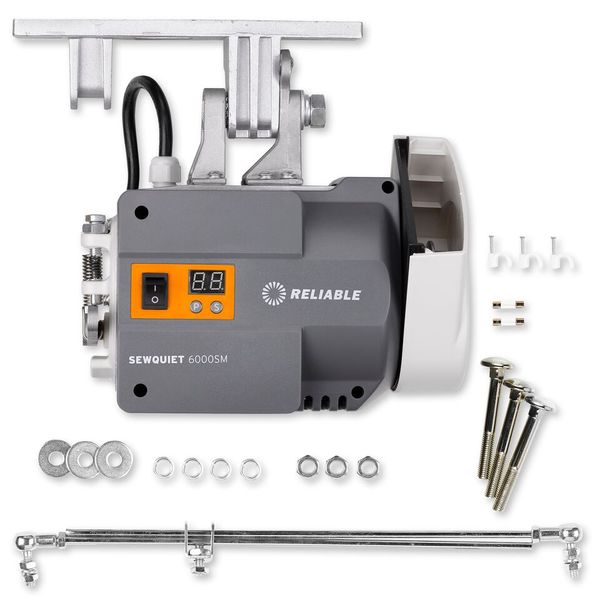

Everything you need to get your Sewquiet up and running is supplied in the box.
Reliable Warranty Information (.PDF)
Reliable 6000SM Information Sheet (.PDF)
Reliable 6000SM Information Sheet and Listing of Error Codes (.PDF)
"Installed Sew Quiet on Tacsew 226RB. Seems like unlimited power. I had to turn it down to about 25% to slow it down. It still had tons of torque" 600W vs 400W Clutch, No Belt. Seth, AllBrands Mechanic
Reliable has lived and breathed every aspect of sewing machines since Milton Kahn started the business more than 5 decades ago. Quality control, expert service and advice are just a few of the things that make Reliable the leading commercial sewing and garment care manufacturer in North America.
Sewing machines may not have changed much in the last 25 years, but the motors that drive them have changed dramatically. The Sewquiet 6000SM is a new generation of clutch free motors, with more torque, yet perfectly silent when sitting idle.
Changing a Clutch Motor to a Servo Motor by Sewing Machines Australia. A variable speed servo motor delivers power savings, silent operation and precise control for your sewing machine. Often older machines with a clutch motor can receive a new lease of life by installing a servo motor. This video is a step by step guide to removing an existing clutch motor and then installing a new servo motor.
SEWLINE SLS-2000 Sewing Machine Servo Motor Info and Demo.I recently installed a Sewline SLS-2000 Servo Motor with needle positioner on my Consew 226 and thought I'd post some info on this motor since I couldn't find much when I looked. I'm very happy with it and all its functions and power.
- US Warranty 1 year parts, 90 days labor on defects in materials and workmanship.
- Non-US Warranty: 30 days parts and labor
- Comes in 110v Standard US Voltage or 220V
- 600W, 3/4 horsepower vs competition's 400W clutch motor or 400-550 conventional dc servo motors
- More torque than conventional 400W clutch or underpowered servomotors
- Up to 75% energy savings
- Digital speed control limiter
- Regular and reverse motor shaft turning directions
- Fused overload protection (2)
SewQuiet 6000SM Servomotor. From the utmost in speed control technology and the ability to reduce costs with improved energy usage, to the 'oh, sew quiet' work environment, choosing the Reliable SewQuiet 6000SM is simply the smarter choice. 12-coil technology means more torque and variable speed control will suit all operator levels.
*Attention Consew Owners!Just a word of caution regarding our synchronizer and the Consew model sewing machines. Our synchronizer comes with 2 size of mounting screws, 7mm & 8mm.
The diameter of the shaft of the hand wheel of the Consew models have changed over the years so it is best to ask the Consew customers of the diameter of the shaft of their machine to make sure that either the 7MM or the 8mm screw will fit. Reliable Note on Consews: Please remove the screw on the hand wheel and measure the diameter of it.
If the diameter is either 7 mm or 8 mm then our synchronizer will fit. If not, it won't fit.
Unfortunately Consew over the years have changed the diameter of that particular screw size and we would not know which size you have.
SYNCHRONIZER INSTALLATION INSTRUCTIONS
Sew Quiet instruction booklet.
The inside diameter of the sync. is 22mm.
The ID of the hib is 15mm
The bolts are 7 and 8 mm dia.

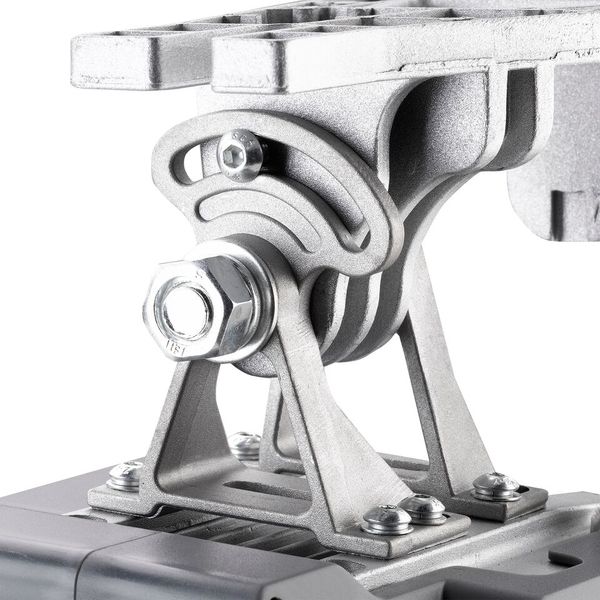

The optional 50 mm pulley is no longer required with the SewQuiet SQ5000 and 6000SM motors. The Reliable SewQuiet 6000SM motor does come with a 60mm pulley and will work with the customer's existing table, however they might need a new belt that is longer than their existing one and the length will vary based on their type of sewing head. First try adjusting the belt that came with your existing set up, since you can change the height of the new servo motor to adjust belt tension.
This is a fantastic motor and exceeds my expectations!! A whole world of difference from my old clutch motor!!
Raymond O, Wisconsin Rapids WI
Love the Servo motor. Easy to install. Works great. I bought this sewing machine with a clutch motor and this motor has made this machine a stitch by stitch operation that I needed and wanted. Thanks.
Just installed this motor today, with needle positioner. What a huge improvement! Step by step stitching, slow start, needle lift, adjustable speed, everything one could want in an industrial motor. It's like having a "new" sewing machine. My old consew servo motor is no comparison to this motor, worthwhile upgrade to any industrial machine.
Levi F, Eatonville WA
Just what I needed for my Pfaff 545 h4 just a beginner Thank you Levo
