INCLUDED: Organ DYx3F 100 Needles (7x1 7x3 7x4 794 794H PD) Singer Consew Juki

Add 3/8" to 1.5" wider gauge between for $500 more than 1/4" standard gauge (Machine Like Juki LG-158 at $11999 which is only Single Needle 30" Long Arm Walking Foot Industrial Sewing Machine)

Includes Safety Clutch for Retiming, 3/4" Presser Foot Lift, .25/64" Maximum Stitch Length, Big M Bobbins for Lockstitches not Chain Stitches, Power Stand 1500SPM

Extra 7x3, (DYx3) Organ Regular Industrial Needles Box of 100 - Specify Machine Brand Model & Needle System # - Choose ONE Size Only per Box

Extra Heavy Duty, Double Needle, Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine

With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve, Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel, Puller (Optional), One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle

  • 1500 Stitches Per Minute
  • 30" Arm
  • Clearance Under Foot: 25/32"
  • Needle Bar Stroke: 1-27/32"
  • Stitch Length Maximum: 25/64"
  • Compound Feed, Walking Foot
  • Presser Foot Locking Lever
  • Built in Bobbin Winder
  • Heavy Duty Top Shaft
  • Includes Table, Stand, Motor

    Applications:

    Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
    Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
    Suitable for stitching double seams and lap seaming.

    Features:

    Compound feed, walking foot mechanism insures positive and even feeding of the material.
    Safety clutch protects the hooks from being damaged in case of accidental strain
    Reverse feed operated by foot pedal
    Centralized arm lubrication
    Reservoir-oiled hooks with micrometric control valve
    Presser foot locking lever
    Built-in bobbin winder
    Push button stitch regulator
    Extra heavy duty top shaft with four ball bearings for support
    Extra large bobbins and vertical axis hooks for use of heavy thread; also allows for long operation between bobbin changes
    High lift
    Front handwheel (on 30" arm) allows for easy positioning of the needle(s)
    745RP is available with optional factory-installed, bottom driven, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space.
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications
  • 1500 stitches per minute
  • Compound feed, walking foot mechanism insures positive and even feeding of the material
  • Safety clutch protects the hook(s) from being damaged in case of accidental strain
  • Reverse feed operated by foot pedal
  • Centralized arm lubrication
  • Reservoir-oiled hook(s)( with micrometric control valve
  • Presser foot locking lever
  • Built-in bobbin winder
  • Push button stitch regulator
  • Extra heavy duty top shaft with four ball bearings for support
  • Extra large bobbins(s) and vertical axis hook(s) for use of heavy thread; also allows for longer operation between bobbin changes
  • High lift
  • Front hand-wheel (on 30" arm) allows for easy positioning of the needle(s)
  • 744RP/745RP are also available with optional factory-installed, feed-synchronized puller. Puller mechanism is completely concealed and does not restrict work space
  • Clearance under foot: 25/32"
  • Needle bar stroke: 1-27/32"
  • Stitch length maximum: 25/64"
  • Needles: 7x3, (DYx3)
  • Metal bobbins: 70141
  • Hook: 70140
  • Standard needle spacing: 1/4"
  • Stitch type: 301
  • Suitable for sewing extra heavyweight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
  • Designed for stitching such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, sails, matting, carpets, polishing wheels, mops, luggage, construction barriers, field covers, divider curtains, fabric structures and heavy bulky products.
  • Model 745R suitable for stitching double seams and lap seaming

    Specifications
    Number of Needles 2 (Double)
    Feeding Mechanism Walking Foot
    Workspace Long Arm
    Standard or Full Function Standard Functions
    Speed, Max (S.P.M.) 1500
    Clearence Under Presser Foot 25/32" (20mm)
    Stitch Length 25/64" (10mm)
    Work Space 20" (508mm)
    Needle 7x3 (DYx3)
    Bobbin 70141
    Bed Size 33 5/16" x 9 1/16" (846mm x 230mm)
    Stitch Type 301
    Hook 70140

    For comparison purposed Sew Pro 745-30 long arm double needle walking foot, jumbo bobbin. double needle long arm walking foot sewing machine without puller feed. Shows optional air foot lift, auto reverse pedal and needle positioner not included with Consew 745-30P basic mechanical model .
    Great for sewing tarps, tents, large covers, extra large bobbin


    Please review our Freight LTL Shipping Policies
Included Accessories
  • Instruction Manual
Other Images

icon Overview Extra Heavy Duty, Double Needle, Drop Feed, Needle Feed (compound Feed), Alternating Presser Feet Lockstitch Machine With: Extra Large Bobbins And Vertical Axis Hooks, Centralized Arm Lubrication, Reservoir-oiled Hooks With Micrometric Control Valve, Presser Foot Locking Lever, Push Button Stitch Regulator, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel, Puller (Optional), One Piece Upper Casting, Easy To Convert Between 1 And 2 Needle

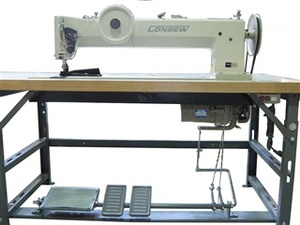

icon With Power Stand
