Heavy Duty, High Speed, Two Needle, Lockstitch Machine, Drop Feed, Needle Feed and Alternating (Walking) Presser Feet

With: Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Hooks and Bobbins, Reverse Feed, Safety Clutch

• Large Vertical Axis Automatically Oiled Hooks
• Oil Pump System with Adjustable Oil Flow
• Upper Oil Glass Sight
• Barrel-type, Locking Stitch Regulator
• Reverse
• Large Top-Loaded Bobbins
• Safety Clutch
• Locking Slide Plate for easy bobbin access.
• Adjustable Take-Up Thread Guide for thread loop timing
• Quick Tension Release
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor

Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Stitch Type 301
• Speed, Max. (S.P.M.): 2600 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 33/64" (13 mm)
• Needle Bar Stroke: 1-27/64" (36 mm)
• Stitch Length, Max: 2.8 s.p.i. (9 mm)
• Work Space: 9-7/8” x 3-15/16" (250 x 100 mm)
• Needles: 135 x 17 (x 2)

Ships via LTL Please review our Freight LTL Shipping Policies - See more at: http://www.allbrands.com/info/policies#freight
Other Images

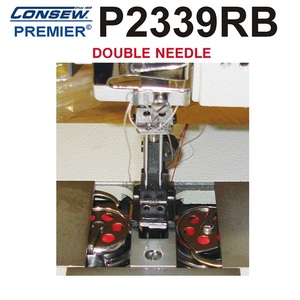

icon P2339RB: TWO NEEDLE Drop Feed Needle Feed Walking Foot Lockstitch Machine
