With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.

Higher lift of the presser foot
The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.


The maximum stitch length is 9mm
With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.



The double-capacity hook is provided as standard
The machine comes with a horizontal-axis double capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.


Automatic lubricating mechanism
A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil ammount in the face plate and hook is adjustable.



The top feed mechanism employs a grease tank and oil wick lubrication mechanism.


The machine acchieves low-vibrationa nd low-noise
The machine head is designed to achieve optimum balance, thereby reducing vibration and noise, The machine affords the operator a comfortable working environment.

Excellent operability
The stitch pitch can be adjusted tin both normal and reverse directions.

The height and inclination of the feed dog can be adjusted.

The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material.
  • US Warranty 90 Days labor on defects in materials and workmanship.
  • Non-US Warranty: 30 days parts and labor
Specifications


Juki Japan webpage on DU1181N

Instruction Manual for Juki DU1181N

Parts List for Juki DU1181N



Model name DU-1181N
Max. sewing speed 2,000sti/min
Max. stitch length 9mm
Presser foot By knee: 15mm
Alternating vertical
movement 2~5mm
Needle DP×17 (#21), #14
  • #23
    Thread #40
  • #8, B33
  • B92, Nm=90/3
  • 30/3

    Specifications:
    Max. sewing speed 2,000 stitches per minute
    Max. stitch length 9mm (forward/backward)
    Needle bar stroke 36.5mm
    Lift of the presser foot by hand 5.5mm
    Lift of the presser foot by knee 15mm
    Thread take-up Link type
    Alternating vertical movement 2~5mm
    Hook Horizontal-axis full-rotary double-capacity hook
    Needle (at the time of delivery) DP×17 (#21) #14~#23*
    Thread #40
  • #8, B33
  • B92, Nm=90/3
  • 30/3
    Pitch changing method By dial
    Knee-lifter mechanism Built on the machine head
    Lubrication Automatic
    Lubricating oil JUKI MACHINE OIL No.7 (equivalent to ISO VG7)
    Distance from needle to machine arm 261mm
    Bed size 477mm × 178mm
    Weight of the machine head 31kg

    Please review our Freight LTL shipping Policies
Other Images

icon With its strong top and bottom feed mechanism, the machine insures the smooth feeding of hard-to-feed materials or multilayered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches. The automatic lubricating mechanism dramatically improves maintainability of the machine.THE MACHINE ACHIEVES LOW-VIBRATION AND LOW-NOISE The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

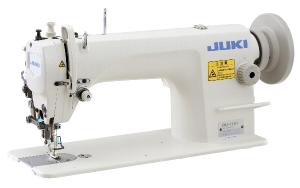

icon Juki DU1181N Walking Foot Top Bottom Feed Sewing Machine & Power Stand Servo Motor

icon HIGH LIFT OF THE PRESSER FOOT The lift of the presser foot, by the knee lifter, is as high as 15mm so as to support processes which require a higher lift of the presser foot such as piping and tape attaching.

icon THE MAXIMUM STITCH LENGTH IS 9MM With its stitch length being as large as 9mm, the machine is applicable to a broader range of sewing processes.

icon THE DOUBLE CAPACITY HOOK IS STANDARD The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.

icon AUTOMATIC LUBRICATION A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.

icon LUBRICATING MECHANISM The top feed mechanism employs a grease tank and oil wick lubrication mechanism.
