Use with Hoop Tech Pocket Framing Gauge plus the Cap Driver for your machine.

Note this video shows the Tajima hoop which includes the Red toggle switch, the Brother compatible hoops do not have the red toggle switch.

Hoop Tech's back of cap clamp is the easiest way to embroider the back of hats when your cap driver is already installed on the machine. It features a simple clamping action, which lets you position the cap easily.

Features:
  • Easy Installation
  • Spring clips keep your stabilizer in place
  • Use one level for locking and clamping in one step
  • Large embroidery area
  • Centering points for easy positioning
  • Inside Dimensions: A little over 5 inches left to right and 2 & 1/2 inches tall

    Driver Sold Separately
    Will not work with every driver but will on the majority of Tajima, Brother, Melco and Toyota machines. Please specify your machine brand and model upon checkout.

    NOTE: When using hoops on your Brother machine that are non-Brother hoops you may have to do a trial layout go make sure the needle or foot will not hit the frame when it is sewing.

    Step-by-step instructions on lowering and adjusting the PR Cap Driver
Specifications
Compact Cap Back Clamp for Cap Drivers

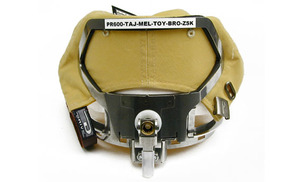

The easy to use patent pending single lever cam locking lever quickly clamps the cap and backing in place and you’re ready to sew. The Compact Cap Back Clamp fits most existing Tajima style drivers. Compact CapBack & Sides – the easiest and fastest way to frame up a cap

Features Include
(2) Backing holding clips to secure packing while framing up the cap.
Mounts to machine using existing cap driver.
Single lever opens, closes and locks the clamp.
All stainless steel metal construction for many years of service.
Fully adjustable clamp adjusts to different fabric thickness.
Clamping action does not leave “hoop burns”
Use your existing Tajima framing gage OR existing Barudan framing gage with HTP adapter piece OR the HTP Framing Gage with the patented T-bar stretcher (all machine types).

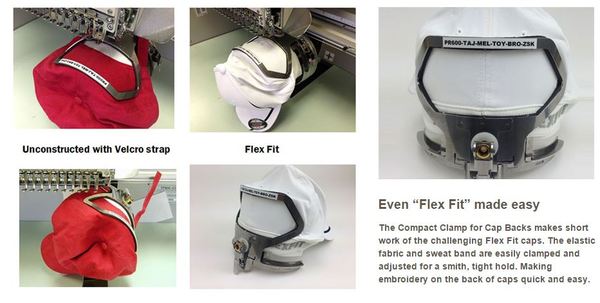

Even “Flex Fit” Made Easy
The Compact Clamp for Cap Backs makes short work of the challenging Flex Fit caps. The elastic fabric and sweat band are easily clamped and adjusted for a smith, tight hold. Making embroidery on the back of caps quick and easy.

The COMPACT CAP BACK CLAMP Fits
TAJIMA
RICOMA
MELCO
TOYOTA
BROTHER
PR-600
BABYLOCK
PRODIGI
SWF
GENERATIONS
ZSK
HIGHLAND
INBRO
MEISTERGRAM
HIGHLAND
and now available for : PR-1000 – HAPPY – BARUDAN
Other Images

icon Small Compact Back of Hat frame is on the left. Optional large frame is on the right. Compact Clamp for Cap Backs is the easiest and fastest way to frame up a cap back. The extra large sewing field with locating points for centering, makes it easy to sew low across the cutout or high on the cap crown for those large design requests.

icon Shown Attached to Driver and Machine. Frame attaches to your cap driver. Slide the back of the cap under the clips and lock it down.

icon HoopTech 5997_ Back of Hat Clamp Frame, Rear Cap Embroidery, Brother PRS1 PR6 PR10, Babylock
