Includes

icon

INCLUDED: HoopTech GEN2 Solution Cap Hat Hoop Dream Frame, HoopTech 599734 for Brother 10 Needle PR1000 PR1050x, Requires Tbar Gauge and Driver*

icon

INCLUDED: HoopTech 599775 T-Bar Framing Gauge for 270° Dream Cap Hat Hoop Brother PR BL Other

The Gen 2 from Hoop Tech is the next generation HTProfessional-style cap hat frame which is designed for sewing closer to the bill than ever before.

"The hat hoops are GREAT! So much better to use than the ones that come with the machine, very fast and easy to hoop and put on the machine, I should have bought them sooner" Joann P, Holliday RL.

Requires EMS Hoop Tech Dream T-Bar Gauge Clamp for the Dream Cap Frame Made in USA, Also requires an optional Brother Driver from the original PRPCF1 Cap Equipment Box*

*Also Requires EMS Hoop Tech Dream T-Bar Gauge Clamp for the Dream Cap Frame Made in USA, Larger Height and Less Width Sewing Area than PR Cap Equipment, for Brother PR655, PR1000, PR1000E, and Babylock ENT10 BNT10 10 Needle Embroidery Machines.

Note: The override bracket is not sold separately. It comes with any Dream Frame (599733 & 599734) that is sold for the Brother PR & BabyLock machines.

Introducing the Hoop Tech "Dream Frame" Cap/Hat Hooping Frame

This is the next generation of EMS style cap frames. It was specially designed with the larger field embroidery machines in mind like Brother and Babylock.

New “DREAM FRAME” features include:
• Backing clips to hold your stabilizer in place during framing.
• Internal retaining fingers for proper bill alignment.
• A spring steel bill retainer that sets and holds the bill angle.
• View ports to use as alignment guides during framing.
• Lighter frame design (20% less weight) than the original.
• Extended saddle for easier installation on driver.
• Open design Top Clamp.
• Large sewing field

The stitch quality of the Dream Frame is even better than the original EMS style cap frame and it’s easier to frame using the redesigned T-Bar Framing Gage Seen in Recommended accessories below:

DREAM FRAME demonstration by Hoop Tech Products:







Setting up the Gen2 on your Brother PR/Babylock machine




Important Notes:
  • The Dream T-Bar Gauge clamp is required to use this Cap Frame.
  • Can be used with existing Brother/Babylock Driver. but it is recommended that you use the Dream T-Bar Gauge for optimum results.
  • There is a metal cap that covers the machine's hoop sensor which tells the machine a Cap Frame is attached. For each sew out press the layout icon for trial run to ensure the needle will not hit the hoop while sewing.


NOTE: When using hoops on your Brother machine that are non-Brother hoops you may have to do a trial layout. Make sure the needle or foot will not hit the frame when it is sewing.

Click To Download PR Drive Modification Instructions

ATTENTION BROTHER PR & BABY LOCK OWNERS

The new “GEN 2” will turn your (6) & (10) needle machine into a REAL cap sewing machine. The new bill holding strap holds down the bill so you can get closer to the needles than ever before, for a much larger sewing field.

For PR & Baby Lock owners, the “GEN 2” comes with a specially designed override bracket that attaches to your cap frame drive bar with one of the 2 thumb screws, and allows you to sew a larger sewing field and also increases the stitching speed. (Just click here to see how easy it is to set up your machine for the dream frame)

The maximum height you can stitch is approximately up to 4" and 5.5"- 6" left to right and as close to 1/2"-5/8" from the bill. However, we do not recommend trying to embroider to the maximum sewing areas depending on the capabilities of your machine. Sewing too close to the top of the cap or too close to the bill could compromise the quality of your stitch. A more realistic measurement would be somewhere between 2" to 2.5" high and 5" to 5.5" across without losing registration.
Specifications

Stitch Area

Maximum height: Approximately up to 3.5 to 4" and closer to the brim
Maximum width Approximately 5.5"- 6"

Note:Manufacturer does not recommend embroidering to the maximum sewing areas depending on the capabilities of your machine. Sewing too close to the top of the cap or too close to the bill could compromise the quality of your stitch. A realistic measurement of the stitch area would be somewhere between 3" to 3.5" tall and 5" to 5.5" wide without losing registration.

HOW TO USE THE Hoop Tech GEN2 CAP FRAME Video:
In this Hooptech How To we show you how to use the Gen2 Capframe. Formerly known as the "Dream frame," this revolutionary frame helps embroidery businesses small

How to Hoop a Richardson/outdoor Cap Video:


How to hoop Bucket hats and Visors using the Gen 2 System:


Override Installation Clip on PR Machines










Hoop Tech Dream Frame Cap Frame part numbers for Brother PR Series compatible with models:

Brother PR600/600II/620/650/655 - 599733
Brother PR1000 Series - 599734
Baby Lock 6 Needle - 599733
Baby Lock 10 Needle - 599734
Included Accessories
When we ship the Gen 2s for the PR600s and PR 1000s the hoop sensor override bracket is stapled to the top of printed instruction. Hoop Tech.
Other Images

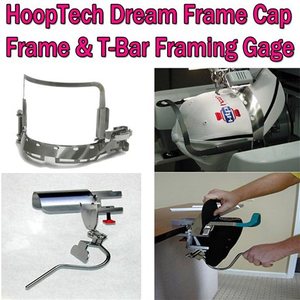

icon HoopTech 599734 GEN2 Solution Hat Hoop Dream Frame +599775 Tbar Gauge. Add Required Brother Cap

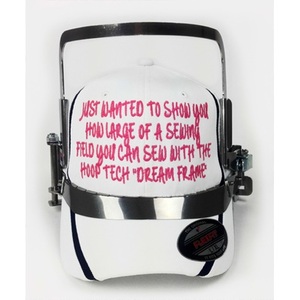

icon Just wanted to show you how large of a sewing field you can sew with the Hoop Tech Dream Frame

icon

icon

icon

icon The innovative spring steel bill retainer holds the lower front of the cap and helps to eliminate flagging.

icon The existing Sewing Field Override bracket lets the PR owner take advantage of the larger sewing field available on the dream frame. Hoop Tech includes this override Bracket for Brother PR1000 and Babylock ENT BNT 10 Machines. Please be sure to do a trial layout before sewing to make sure the needle never hits the hoop

icon Overide installation on PR1000 machines

icon

icon

icon

icon

icon The Gen2 Starter. HoopTech 599734 GEN2 Solution Hat Hoop Dream Frame +599775 Tbar Gauge. Add Required Brother Babylock Cap Driver for PR1000 PR1050x If You Don't Have

HoopTech vs Brother Cap Equipment: Thank you for the question. In addition to the larger sew field, we have a few other differences. Starting with the T-Bar Framing Gauge that replaces the framing gauge from brother. Our gauge is adjustable, making it easy to lay the material down on a structured cap, unstructured cap, bucket caps and visors. It also has a T-Bar to assist in stretching the material so the customer no longer needs an extra set of hands, bag clips or rubber bands. The Gen 2 frame itself provides much better registration while holding the backing in place for the customer. The better registration means way less needle breaks and bunching of stitches. I have added links below to our best demonstration videos on the T-bar and Gen2. These should help highlight the features I have just outlined. Please let me know if you need anything else. https://www.youtube.com/watch?v=3IO73fwb48c&t=45s how to use the Gen 2 https://www.youtube.com/watch?v=yzzvcLV-pgA - structured caps i.e. Richardson https://www.youtube.com/watch?v=wScd6bPM3pk - buckets ad visors using Gen 2
Joann P, Holiday FL
The hat hoops are GREAT! So much better to use than the ones that come with the machine, very fast and easy to hoop and put on the machine, I should have bought them sooner
